SMHSV5 95-240

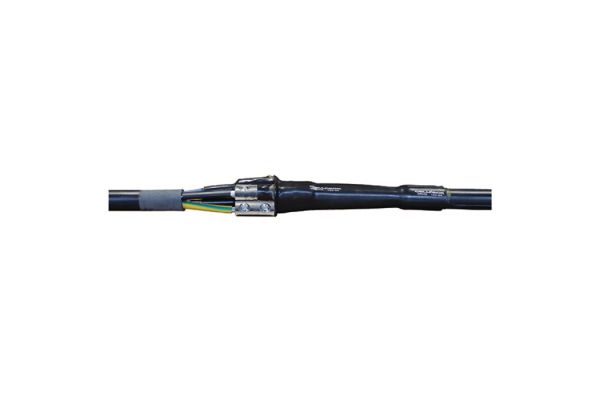

Heat shrinkable straight-through joint
with screw connectors for unarmoured polymeric cables and conductors
Art. no.
357710
| Product family | SMHSV |
|---|---|
| Product family | SMHSV |
| Main description | Heat shrinkable straight-through joint |
| Sub description | with screw connectors for unarmoured polymeric cables and conductors |
| Family description | Universally suitable for connecting polymeric cables or conductors insulated with PVC, PE and XLPE (e.g. N(A)YY, NYM, TT). With mechanical connectors with shear head bolts, suitable for aluminium or copper cables. |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L1 | 1200 mm |
| Nominal cross section Polymeric cable unarmoured per conductor 5x min | 95 mm² |
| Nominal cross section Polymeric cable unarmoured per conductor 5x max | 240 mm² |
| Delivery scope | Outer sleeve, Inner sleeves, Screw connectors with shear head bolts, Cleaning tissue, Emery cloth, Assembly instructions | |
|---|---|---|
| Shelf life description | Unlimited shelf life | |
| Country of origin | Germany | |
| Customs tariff number | 39173900 | |
| EAN/GTIN | 4010311172644 | |
| Alternate quantity | 1 | 1 |
| Alternative unit of measure | Piece | Bag1 |
| Base quantity | 1 | 1 |
| Base unit of measure | Piece | Piece |
| Lenght (mm) | 1500 | 1500 |
| Width (mm) | 500 | 500 |
| Height (mm) | 250 | 250 |
| Net weight (kg) | 2,089 | 2,089 |
| Gross weight (kg) | 2,089 | 2,089 |
