| Product family | T...GG |
|---|---|

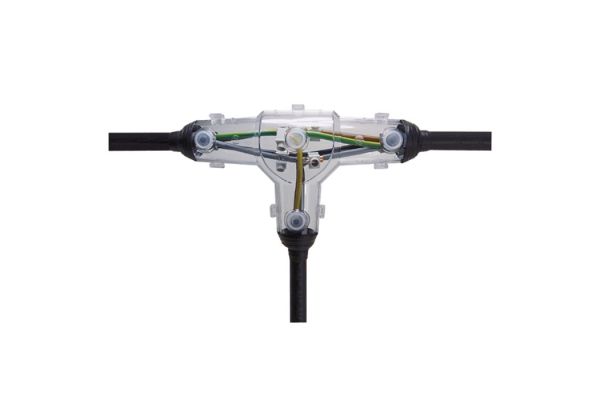

| Main description | Cast resin branch joint |
| Sub description | for polymeric cables |
| Family description | Universally suitable for branching polymeric cables or conductors insulated with PVC, PE, XLPE and EPR (e.g. N(A)YY, NYM, TT) with or without concentric conductor. With hydrolysis resistance PUR cast resin GG. Suitable for branch clamps on copper and aluminium conductors |
| Optional accessory | Screw branch clamp AK (see Connecting technology), Cleaner UNIVERSAL CLEANER 121 (see Accessories), Branch clamp KP (see Connecting technology), Split bolt clamp FK (see Connecting technology) |
| Characteristics | Compact dimensions, High-quality transparent shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L | 240 mm |
| Width B | 138 mm |
| Heigth H | 60 mm |
| Diameter D | 50 mm |
| Nominal cross section Main cable Polymeric cable unarmoured per conductor 3x max | 10 mm² |
| Nominal cross section Branch cable Polymeric cable unarmoured per conductor 3x max | 10 mm² |
| Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x max | 6 mm² |
| Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x max | 6 mm² |
| Nominal cross section Main cable Polymeric cable unarmoured per conductor 5x max | 4 mm² |
| Nominal cross section Branch cable Polymeric cable unarmoured per conductor 5x max | 4 mm² |
| Nominal cross section Main cable Polymeric cable with concentric conductor per conductor 3x max | 6 mm² |
| Diameter cable max | 22 mm |
| Delivery scope | Fill and air-release funnel, Hydrolysis resistance PUR cast resin GG, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell, PVC insulation tape, Protective gloves, Assembly instructions | ||
|---|---|---|---|
| Shelf life | 24 Month | ||
| Country of origin | Germany | ||
| Customs tariff number | 39095090 | ||
| EAN/GTIN | 4010311171173 | ||
| Packaging type | Piece | Case | Pal. OW |
| Content quantity | 1 | 1 | 198 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 235 | 235 | 1200 |
| Width (mm) | 191 | 191 | 800 |
| Height (mm) | 85 | 85 | 1130 |
| Net weight (kg) | 0,927 | 0,927 | 183,546 |
| Gross weight (kg) | 0,927 | 0,927 | 201,746 |
