CHM 24kV 800 V

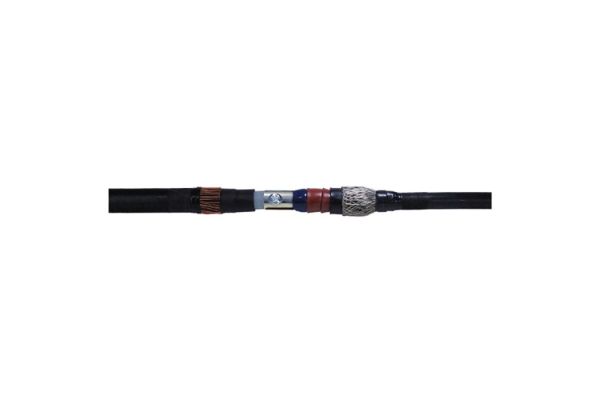

1-core straight-through joint
with screw connector for 1-core polymeric cables
Art. no.
331184
| Product family | CHM...V |
|---|---|
| Main description | 1-core straight-through joint |
| Sub description | with screw connector for 1-core polymeric cables |
| Family description | Hybrid straight-through joints CHM...V are suitable for all 1-core polymericinsulated cables (PVC, PE, XLPE, EPR). They allow the connection of cables with different cross sections and conductor materials even with different cable designs concerning the semi-conductive layer (graphite-coated, removable or strippable) and screen design (copper wire or tape screen). With screw connector. |
| Notes | Can be used also for cables Um = 7,2 kV, then the minimum diameter over conductor insulation has to be checked. |
| Characteristics | Reliable stress control due to flexible silicone stress control elements, For both copper and aluminium conductors, For all cables with copper wire or tape screen, Wide conductor and cross-section range, Quick, safe and easy assembly, Ready for immediate operation, Suitable for a wide range of applications due to integrated screw connector |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 12/20 (24) kV - 12,7/22 (24) kV |
|---|---|
| Test standards | CENELEC HD 629.1 |
| Length L | 1000 mm |
| Diameter over core insulation after removal of the outer conductive layer min | 36,8 mm |
| Nominal cross section 12 kV min | 800 mm² |
| Nominal cross section 12 kV max | 800 mm² |
| Nominal cross section 17,5 kV min | 800 mm² |
| Nominal cross section 17,5 kV max | 800 mm² |
| Nominal cross section 24 kV min | 800 mm² |
| Nominal cross section 24 kV max | 800 mm² |
| Delivery scope | Thick wall heat shrinkable insulation tubes, Thick wall heat shrinkable outer tube with hot melt adhesive, Silicone field control elements, Copper braid tube, Pressure springs, Screw connector, Field control filling tape (blue), Assembly material, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39269097 | ||
| EAN/GTIN | 4010311162836 | ||
| Packaging type | Piece | Carton | Pal. EU |
| Content quantity | 1 | 1 | 8 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 1290 | 1290 | 1200 |
| Width (mm) | 360 | 360 | 800 |
| Height (mm) | 185 | 185 | 1140 |
| Net weight (kg) | 5,702 | 5,702 | 45,616 |
| Gross weight (kg) | 5,702 | 5,702 | 86,624 |
