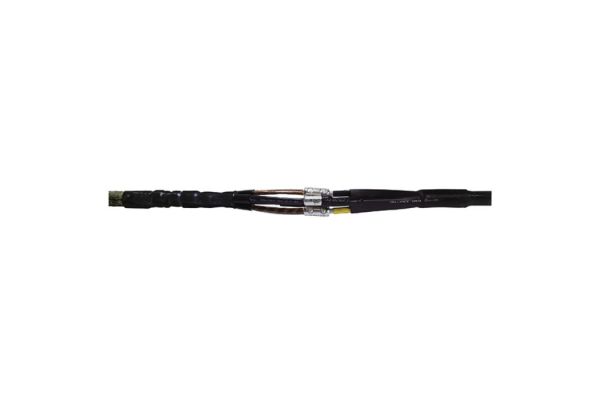

SMHSV4 95-240 Pb-RF
Heat shrinkable transition joint
with screw connectors and solderless earthing wire connection
Art. no.
307669
| Product family | SMHSV4…Pb-RF |
|---|---|
| Product family | SMHSV4…Pb-RF |
| Main description | Heat shrinkable transition joint |
| Sub description | with screw connectors and solderless earthing wire connection |
| Family description | Universally suitable for transition from mass-impregnated paper cables to polymeric-insulated cables made of PVC, PE and XLPE, e.g. NAKLEY, N(A)KBA on N(A)YY. With mechanical connectors with shear heads bolts suitable for aluminium or copper cables. |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L1 | 1200 mm |
| Nominal cross section Polymeric cable unarmoured per conductor 4x min | 95 mm² |
| Nominal cross section Polymeric cable unarmoured per conductor 4x max | 240 mm² |
| Nominal cross section Mass-impregnated paper cable NAKLEY per conductor 3x min | 95 mm² |
| Nominal cross section Mass-impregnated paper cable NAKLEY per conductor 3x max | 240 mm² |
| Nominal cross section Mass-impregnated paper cable N(A)KBA per conductor 4x min | 95 mm² |
| Nominal cross section Mass-impregnated paper cable N(A)KBA per conductor 4x max | 185 mm² |
| Delivery scope | Outer sleeve, Inner sleeves, Core insulating tubes, Earthing wire, Pressure spring, Spreader cap, Screw connectors with shear head bolts, Cleaning tissue, Emery cloth, Assembly instructions | |
|---|---|---|
| Shelf life description | Unlimited shelf life | |
| Country of origin | Germany | |
| Customs tariff number | 39173900 | |
| EAN/GTIN | 4010311157757 | |
| Alternate quantity | 1 | 1 |
| Alternative unit of measure | Piece | Bag1 |
| Base quantity | 1 | 1 |
| Base unit of measure | Piece | Piece |
| Lenght (mm) | 1300 | 1300 |
| Width (mm) | 210 | 210 |
| Height (mm) | 130 | 130 |
| Net weight (kg) | 3,285 | 3,285 |
| Gross weight (kg) | 3,285 | 3,285 |
