Y 1 V AK

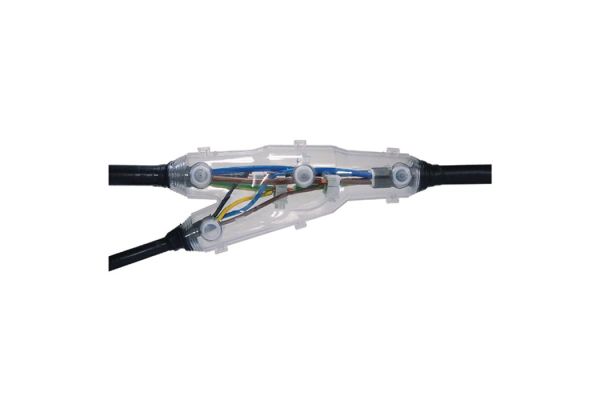

Cast resin branch joint
with screw branch clamps for polymeric cables
Art. no.
299002
Product family | Y…V AK |
---|---|
Main description | Cast resin branch joint |
Sub description | with screw branch clamps for polymeric cables |
Family description | Universally suitable for branching polymeric cables or conductors insulated with PVC, PE, XLPE and EPR (e.g. N(A)YY, NYM, TT) with or without concentric conductor. With one-core branch clamps, suitable for copper and aluminium conductors. |
Characteristics | Compact dimensions, High-quality transparent shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting |
Applications | Indoor, Outdoor, Underground, Water, Installation ducts |
Optional accessory | Cleaner UNIVERSAL CLEANER 121 (see Accessories) |
Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
---|---|
Test standards | EN 50393 |
Length L | 240 mm |
Width B | 110 mm |
Heigth H | 70 mm |
Diameter D | 60 mm |
Diameter cable Main cable max | 22 mm |
Diameter cable Branch cable max | 22 mm |
Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x min | 2,5 mm² |
Nominal cross section Main cable Polymeric cable unarmoured per conductor 4x max | 6 mm² |
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x min | 2,5 mm² |
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x max | 6 mm² |
Nominal cross section Main cable Polymeric cable unarmoured per conductor 5x min | 2,5 mm² |
Nominal cross section Main cable Polymeric cable unarmoured per conductor 5x max | 6 mm² |
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 5x min | 2,5 mm² |
Nominal cross section Branch cable Polymeric cable unarmoured per conductor 5x max | 6 mm² |
Delivery scope | Fill and air-release funnel, Hydrolysis resistance PUR type EG cast resin, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell, PVC insulation tape, Protective gloves, Screw branch clamps, Closing stops, Assembly instructions | ||
---|---|---|---|
Shelf life | 40 Month | ||
Country of origin | Germany | ||
Customs tariff number | 39095090 | ||
EAN-UPC | 4010311154503 | ||
Alternate quantity | 1 | 1 | 1 |
Alternative unit of measure | Piece | Case | Pal. OW |
Base quantity | 1 | 1 | 198 |
Base unit of measure | Piece | Piece | Piece |
Lenght | 238 | 238 | 1200 |
Width | 199 | 199 | 800 |
Height | 87 | 87 | 1130 |
Dimension unit | Millimetres | Millimetres | Millimetres |
Volume | 4,12 | 4,12 | 1084,8 |
Volume unit | Cubic decimetres | Cubic decimetres | Cubic decimetres |
Net weight | 0,834 | 0,834 | 165,132 |
Gross weight | 0,834 | 0,834 | 183,332 |
Weight unit | Kilogram | Kilogram | Kilogram |
