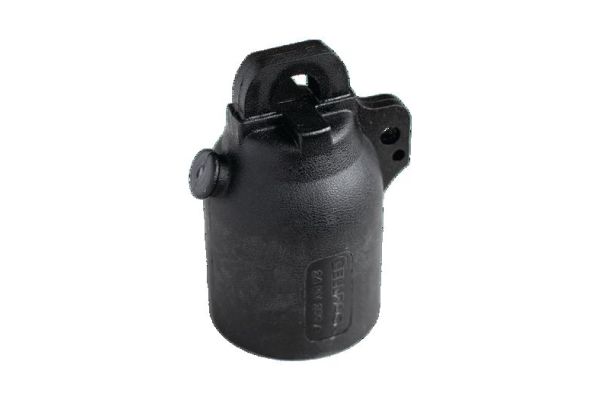

CIK 250A 24 kV
Voltage-resistant insulating cap
for plug-in connections type A 250A and type C 630A
Art. no.
265023
Product family | CIK |
---|---|
Main description | Voltage-resistant insulating cap |
Sub description | for plug-in connections type A 250A and type C 630A |
Family description | The voltage-resistant insulating caps CIK are suitable for electrical insulations of outer cones type A 250A (with bail holder) and type C 630A (screwable) on encapsulated switching equipment and transformers up to 36 kV, in accordance with EN 50180 and EN 50181. |
Characteristics | Submersible, Outer semi-conductive layer made of semi-conductive EPDM provides protection from exposed electrical parts, Quick, safe and easy assembly |
Applications | Indoor, Outdoor |
Voltage levels | U0/U (Um) 6/10 (12) kV - 12,7/22 (24) kV |
---|---|
Width B | 82 mm |
Heigth H | 116 mm |
Diameter D | 68 mm |
Delivery scope | Set of 3 voltage resistant insulating caps, Assembly material, Assembly instructions | ||
---|---|---|---|
Shelf life description | Unlimited shelf life | ||
Country of origin | Germany | ||
Customs tariff number | 85479000 | ||
EAN/GTIN | 4010311144597 | ||
Packaging type | Piece | Carton | Pal. OW |
Content quantity | 1 | 1 | 120 |
Unit of measure | Piece | Piece | Piece |
Lenght (mm) | 305 | 305 | 1200 |
Width (mm) | 210 | 210 | 800 |
Height (mm) | 95 | 95 | 1130 |
Net weight (kg) | 2,391 | 2,391 | 286,92 |
Gross weight (kg) | 2,391 | 2,391 | 305,12 |
