Premio 1180

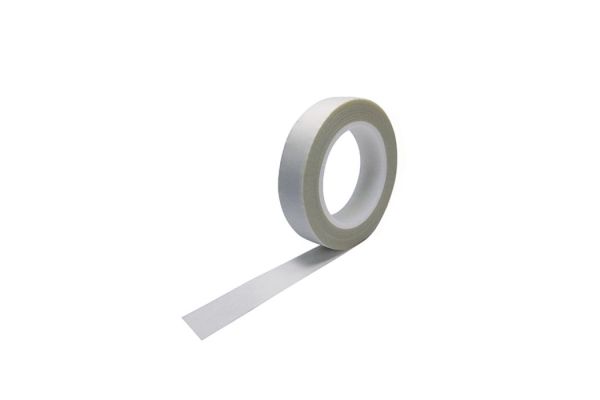

Fibreglass tape 180 °C
for heat-proof electrical and mechanical insulation
Art. no.
223580
Product family | Premio 1180 |
---|---|
Main description | Fibreglass tape 180 °C |
Sub description | for heat-proof electrical and mechanical insulation |
Family description | Self-adhesive fibreglass tape coated with heat-hardening silicone adhesive, temperature-resistant up to 180 °C. |
Characteristics | Particularly high temperature resistance, Excellent mechanical strength, Very good form adaptability, Good solvent and paint resistance, Extreme tear resistance, Inscribable, Stable core |
Applications | Insulation of highly exothermic electrical components, As a cable protection during welding and soldering, As a protection wrapping against radiant heat |
Materials | Fibreglass reinforcement |
---|---|
Length L | 33 m |
Width B | 25 mm |
Thickness | 0,17 mm |
Colours | white |
Adhesive strength | 3,8 N/cm |
Elongation at break | 8 % |
Tensile strength at break | 300 N/cm |
Heat resistance max | 180 °C |
Breakdown voltage | 3 kV |
Insulation resistance | 1500 MΩ |
Delivery scope | Fibreglass tape | ||
---|---|---|---|
Country of origin | Germany | ||
Customs tariff number | 39191012 | ||
EAN/GTIN | 4010311124216 | ||
Packaging type | Piece | Bag1 | Carton |
Content quantity | 1 | 1 | 50 |
Unit of measure | Piece | Piece | Piece |
Lenght (mm) | 117 | 117 | 350 |
Width (mm) | 117 | 117 | 350 |
Height (mm) | 25 | 25 | 235 |
Net weight (kg) | 0,218 | 0,218 | 10,9 |
Gross weight (kg) | 0,218 | 0,218 | 11,2 |
