Premio 2281

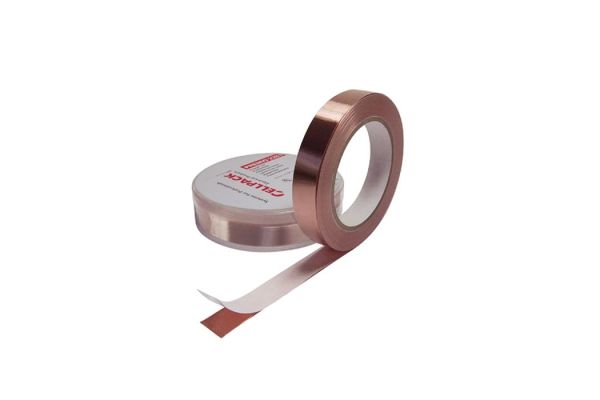

Copper foil
for discharge of electrostatic charge and screening of components
Art. no.
223576
| Product family | Premio 2281 |
|---|---|
| Main description | Copper foil |
| Sub description | for discharge of electrostatic charge and screening of components |
| Family description | Copper foil with conductive acrylic adhesive. Suitable for discharge of electrostatic charge and screening of components and appliances against electro-magnetic fields. |
| Characteristics | Conductive acrylate adhesive, Very good corrosion resistance, Can be soldered, In practical plastic box |
| Materials | Copper foil |
|---|---|
| Length L | 33 m |
| Width B | 19 mm |
| Thickness | 0,06 mm |
| Colours | copper |
| Adhesive strength | 4,5 N/cm |
| Tensile strength at break | 40 N/cm |
| Heat resistance min | -20 °C |
| Heat resistance max | 150 °C |
| Delivery scope | Copper foil | ||
|---|---|---|---|
| Country of origin | Ireland | ||
| Customs tariff number | 39191012 | ||
| EAN/GTIN | 4010311124179 | ||
| Packaging type | Piece | Tin | Carton |
| Content quantity | 1 | 1 | 104 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 124 | 124 | 585 |
| Width (mm) | 124 | 124 | 390 |
| Height (mm) | 32 | 32 | 335 |
| Net weight (kg) | 0,323 | 0,323 | 33,592 |
| Gross weight (kg) | 0,323 | 0,323 | 33,892 |
