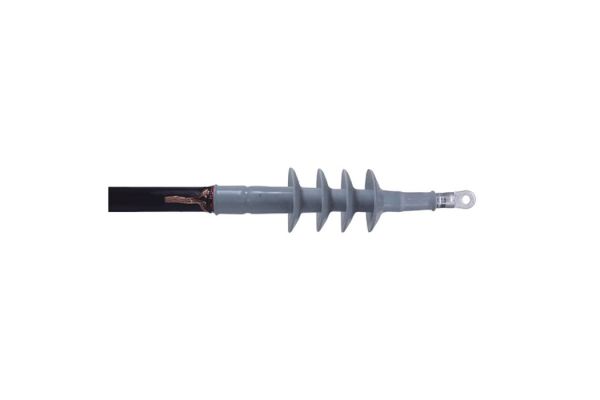

CAE-F 24kV 35-120
1-core outdoor slip-on cable termination
for 1-core polymeric cables
Art. no.
199194
| Product family | CAE-F |
|---|---|
| Main description | 1-core outdoor slip-on cable termination |
| Sub description | for 1-core polymeric cables |
| Family description | Contrax cable terminations CAE-F are suitable for all 1-core polymeric-insulated cables (PVC, PE, XLPE, EPR) with different types of semi-conductive layers (graphitecoated, removable or strippable) and screen design (wire or tape). Suitable for compression cable lugs. |
| Notes | Can be used also for cables Um = 7,2 kV, then the minimum diameter over conductor insulation has to be checked. |
| Optional accessory | EGA earthing kit for cables with tape screen (see Connecting technology), Compression cable lugs (see Connecting technology) |
| Characteristics | Silicone slip-on components for quick, safe and easy assembly, Wide cross-section range, Ready for immediate operation |
| Applications | Outdoor |
| Voltage levels | U0/U (Um) 12/20 (24) kV - 12,7/22 (24) kV |
|---|---|
| Test standards | CENELEC HD 629.1 |
| Length L | 325 mm |
| Diameter over core insulation after removal of the outer conductive layer min | 17,3 mm |
| Number of sheds per phase | 4 Pieces |
| Diameter shed | 87 mm |
| Nominal cross section 24 kV min | 35 mm² |
| Nominal cross section 24 kV max | 120 mm² |
| Delivery scope | 3 One-piece slip-on silicone cable terminations with integrated stress control element, Silicone tubes, Sealing tape, Assembly material, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 85469090 | ||
| EAN/GTIN | 4010311054827 | ||
| Packaging type | Piece | Carton | Pal. OW |
| Content quantity | 1 | 1 | 84 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 383 | 383 | 1200 |
| Width (mm) | 192 | 192 | 800 |
| Height (mm) | 132 | 132 | 1130 |
| Net weight (kg) | 1,032 | 1,032 | 86,688 |
| Gross weight (kg) | 1,032 | 1,032 | 104,888 |
