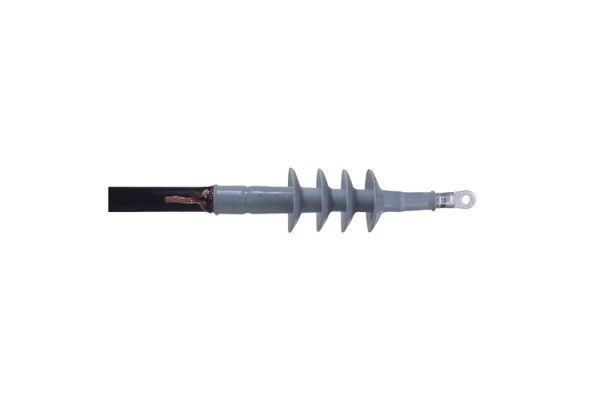

CAE-F 17kV 95-240
1-core outdoor slip-on cable termination
for 1-core polymeric cables
Art. no.
199190
| Main description | 1-core outdoor slip-on cable termination |
|---|---|
| Sub description | for 1-core polymeric cables |
| Family description | Contrax cable terminations CAE-F are suitable for all 1-core polymeric-insulated cables (PVC, PE, XLPE, EPR) with different types of semi-conductive layers (graphitecoated, removable or strippable) and screen design (wire or tape). Suitable for compression cable lugs. |
| Notes | Can be used also for cables Um = 7,2 kV, then the minimum diameter over conductor insulation has to be checked. |
| Optional accessory | EGA earthing kit for cables with tape screen (see Connecting technology), Compression cable lugs (see Connecting technology) |
| Characteristics | Silicone slip-on components for quick, safe and easy assembly, Wide cross-section range, Ready for immediate operation |
| Applications | Outdoor |
| Voltage levels | U0/U (Um) 8,7/15 (17,5) kV |
|---|---|
| Test standards | DIN VDE 0278-629-1 |
| Length L | 325 mm |
| Diameter over core insulation after removal of the outer conductive layer min | 19,9 mm |
| Number of sheds per phase | 4 Pieces |
| Diameter shed | 90 mm |
| Nominal cross section 17,5 kV min | 95 mm² |
| Nominal cross section 17,5 kV max | 240 mm² |
| Delivery scope | 3 One-piece slip-on silicone cable terminations with integrated stress control element, Silicone tubes, Sealing tape, Assembly material, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 85469090 | ||
| EAN/GTIN | 4010311054780 | ||
| Packaging type | Piece | Carton | Pal. OW |
| Content quantity | 1 | 1 | 36 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 420 | 420 | 1200 |
| Width (mm) | 250 | 250 | 800 |
| Height (mm) | 140 | 140 | 1130 |
| Net weight (kg) | 0,874 | 0,874 | 31,464 |
| Gross weight (kg) | 1,223 | 1,223 | 49,664 |
