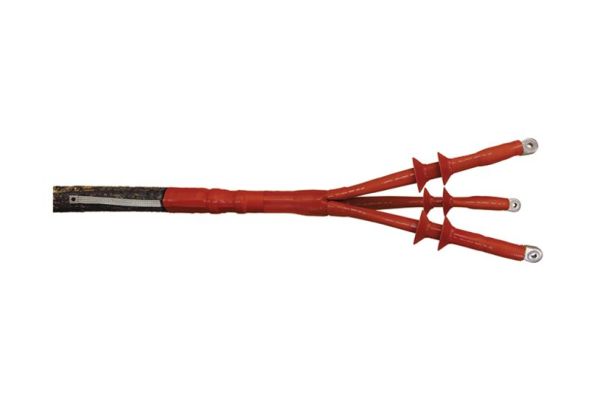

CHEP-3F 17kV 25-240
Outdoor cable termination
for belted cables up to 17.5 kV (MIND)
Art. no.
197538
| Main description | Outdoor cable termination |
|---|---|
| Sub description | for belted cables up to 17.5 kV (MIND) |
| Family description | Hybrid cable terminations CHEP-3F are suitable for belted cables up to 17.5 kV (for MIND cables only). Suitable for compression and screw cable lugs. |
| Notes | For cables with draining compound, please contact us. |
| Optional accessory | Cable lugs (see Connecting technology) |
| Characteristics | Wide cross-section range, Quick, safe and easy assembly, Ready for immediate operation |
| Applications | Outdoor |
| Voltage levels | U0/U (Um) 8,7/15 (17,5) kV |
|---|---|
| Test standards | DIN VDE 0278-629-2 |
| Length L | 500 mm |
| Diameter over core insulation after removal of the outer conductive layer min | 13,2 mm |
| Number of sheds per phase | 2 Pieces |
| Diameter shed | 85 mm |
| Nominal cross section 12 kV min | 70 mm² |
| Nominal cross section 12 kV max | 240 mm² |
| Nominal cross section 17,5 kV min | 25 mm² |
| Nominal cross section 17,5 kV max | 240 mm² |
| Delivery scope | Spreader cap (tracking resistant), Heat shrinkable tube (tracking resistant), Earthing set, Silicone sheds, Assembly material, Sealing tape, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 85469090 | ||
| EAN/GTIN | 4010311050867 | ||
| Packaging type | Piece | Carton | Pal. OW |
| Content quantity | 1 | 1 | 42 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 730 | 730 | 1200 |
| Width (mm) | 165 | 165 | 800 |
| Height (mm) | 157 | 157 | 1130 |
| Net weight (kg) | 1,398 | 1,398 | 58,716 |
| Gross weight (kg) | 1,756 | 1,756 | 76,916 |
