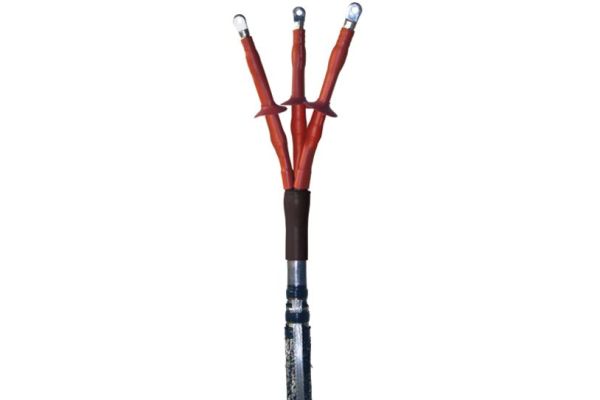

CHEP(H)-3I 36kV 50-240
Indoor cable termination
for H-Type cables from 24 to 36 kV (MIND)
Art. no.
197536
| Product family | CHEP(H)-3I |
|---|---|
| Main description | Indoor cable termination |
| Sub description | for H-Type cables from 24 to 36 kV (MIND) |
| Family description | Hybrid cable terminations CHEP(H)-3I are suitable for H-Type cables from 24 to 36 kV (for MIND cables only). Suitable for compression and screw cable lugs. |
| Notes | For cables with draining compound, please contact us. |
| Optional accessory | Cable lugs (see Connecting technology) |
| Characteristics | Wide cross-section range, Quick, safe and easy assembly, Ready for immediate operation |
| Applications | Indoor |
| Voltage levels | U0/U (Um) 18/30 (36) kV - 19/33 (36) kV |
|---|---|
| Test standards | DIN VDE 0278-629-2 |
| Length L | 650 mm |
| Diameter over core insulation after removal of the outer conductive layer min | 23,1 mm |
| Number of sheds per phase | 2 Pieces |
| Diameter shed | 85 mm |
| Nominal cross section 36 kV min | 50 mm² |
| Nominal cross section 36 kV max | 240 mm² |
| Delivery scope | Conductive spreader cap, Heat shrinkable tube (tracking resistant), Conductive heat shrinkable tubes, Oil barrier tubing, Silicone sheds, Filling tape, Earthing wire, Pressure spring, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 85469090 | ||
| EAN/GTIN | 4010311050843 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Carton | Pal. OW |
| Base quantity | 1 | 1 | 35 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 701 | 701 | 1200 |
| Width (mm) | 227 | 227 | 800 |
| Height (mm) | 125 | 125 | 1130 |
| Net weight (kg) | 2,437 | 2,437 | 85,295 |
| Gross weight (kg) | 2,807 | 2,807 | 103,495 |
