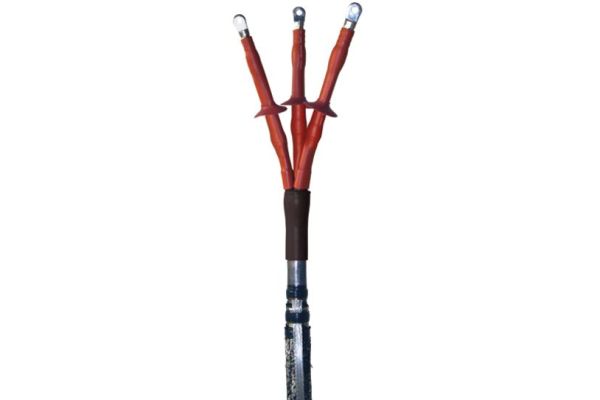

CHEP(H)-3I 24kV 70-240
Indoor cable termination
for H-Type cables from 24 to 36 kV (MIND)
Art. no.
197533
Product family | CHEP(H)-3I |
---|---|
Main description | Indoor cable termination |
Sub description | for H-Type cables from 24 to 36 kV (MIND) |
Family description | Hybrid cable terminations CHEP(H)-3I are suitable for H-Type cables from 24 to 36 kV (for MIND cables only). Suitable for compression and screw cable lugs. |
Notes | For cables with draining compound, please contact us. |
Optional accessory | Cable lugs (see Connecting technology) |
Characteristics | Wide cross-section range, Quick, safe and easy assembly, Ready for immediate operation |
Applications | Indoor |
Voltage levels | U0/U (Um) 12/20 (24) kV - 12,7/22 (24) kV |
---|---|
Test standards | DIN VDE 0278-629-2 |
Length L | 500 mm |
Diameter over core insulation after removal of the outer conductive layer min | 19,9 mm |
Number of sheds per phase | 1 Pieces |
Diameter shed | 85 mm |
Nominal cross section 24 kV min | 70 mm² |
Nominal cross section 24 kV max | 240 mm² |
Delivery scope | Conductive spreader cap, Heat shrinkable tube (tracking resistant), Conductive heat shrinkable tubes, Oil barrier tubing, Silicone sheds, Filling tape, Earthing wire, Pressure spring, Assembly instructions | ||
---|---|---|---|
Shelf life description | Unlimited shelf life | ||
Country of origin | Germany | ||
Customs tariff number | 85469090 | ||
EAN/GTIN | 4010311050812 | ||
Packaging type | Piece | Carton | Pal. OW |
Content quantity | 1 | 1 | 42 |
Unit of measure | Piece | Piece | Piece |
Lenght (mm) | 720 | 720 | 1200 |
Width (mm) | 155 | 155 | 800 |
Height (mm) | 140 | 140 | 1130 |
Net weight (kg) | 2,17 | 2,17 | 91,14 |
Gross weight (kg) | 2,17 | 2,17 | 109,34 |
