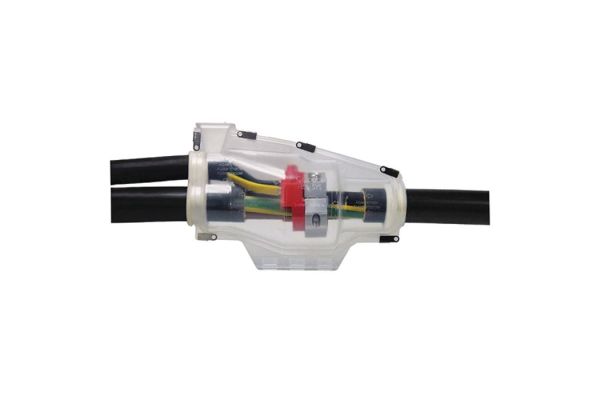

H 5-SYS 70-150 UWR
Cast resin branch joint for house connections
with branch clamp for unarmoured polymeric cables
Art. no.
195816
| Product family | H 5-SYS...UWR |
|---|---|
| Product family | H 5-SYS...UWR |
| Main description | Cast resin branch joint for house connections |
| Sub description | with branch clamp for unarmoured polymeric cables |
| Family description | For branching of cables with insulation made of PVC, PE and XLPE (e.g. N(A)YY, GN-CLN…). With hydrolysis resistance PUR cast resin UWR. With branch clamp, suitable for copper and aluminium conductors. |
| Notes | REACH Regulation on the restriction of diisocyanates (for EU countries only)The European Commission amended Annex XVII of the REACH Regulation (EC) (new number 74) with Regulation (EU) 2020/1149, which entered into force on 24 August 2020. In accordance with the new REACH Regulation, appropriate training will be required prior to the industrial or professional use of diisocyanates, adhesives and sealants as of 24 August 2023. All information regarding training materials and training courses is available on the ISOPA/ALIPA website https://www.safeusediisocyanates.eu/ |
| Optional accessory | Cleaner UNIVERSAL CLEANER 121 (see Accessories) |
| Characteristics | Compatible with a branching system with specific contact geometry designed to facilitate connection of branch cable in visible area, Cast resin can be poured in with an angle up to 45° or laterally up to 45°, High-quality transparent shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting, Can be installed / operated while under voltage |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L | 270 mm |
| Heigth H | 180 mm |
| Diameter D | 110 mm |
| Diameter cable Main cable max | 46 mm |
| Diameter cable Branch cable max | 36 mm |
| Nominal cross section Main cable SE Polymeric cable unarmoured per conductor 4x min | 95 mm² |
| Nominal cross section Main cable SE Polymeric cable unarmoured per conductor 4x max | 150 mm² |
| Nominal cross section Main cable SM Polymeric cable unarmoured per conductor 4x min | 70 mm² |
| Nominal cross section Main cable SM Polymeric cable unarmoured per conductor 4x max | 120 mm² |
| Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x min | 16 mm² |
| Nominal cross section Branch cable Polymeric cable unarmoured per conductor 4x max | 50 mm² |
| Delivery scope | Hydrolysis resistance PUR type UWR cast resin, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell, Sealing tape, Protective gloves, Branch clamp HE 1/70/150, Assembly instructions | ||
|---|---|---|---|
| Shelf life | 24 Month | ||
| Country of origin | Germany | ||
| Customs tariff number | 39095090 | ||
| EAN/GTIN | 4010311049885 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Case | Pal. OW |
| Base quantity | 1 | 1 | 50 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 364 | 364 | 1200 |
| Width (mm) | 219 | 219 | 800 |
| Height (mm) | 177 | 177 | 1130 |
| Net weight (kg) | 2,59 | 2,59 | 129,5 |
| Gross weight (kg) | 2,59 | 2,59 | 147,7 |
