SK-V-AS 120-300
Screw cable lug for Cu and Al
longitudinally sealed, with shear head bolts
Art. no.
195311
| Product family | SK-V-AS |
|---|---|
| Product family | SK-V-AS |
| Main description | Screw cable lug for Cu and Al |
| Sub description | longitudinally sealed, with shear head bolts |
| Family description | Screw cable lugs for aluminium- and copper conductors RM/SE, for a safe hold of the cable, designed for indoor and outdoor terminations. |
| Length L | 100 mm |
|---|---|
| Length L1 | 64 mm |
| Diameter D1 | 25 mm |
| Diameter D2 | 13 mm |
| Diameter D3 | 38 mm |
| Number of bolts | 2 Pieces |
| Country of origin | Germany | ||
|---|---|---|---|
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311053608 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Bag1 | Case |
| Base quantity | 1 | 1 | 10 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 140 | 140 | 310 |
| Width (mm) | 70 | 70 | 160 |
| Height (mm) | 50 | 50 | 100 |
| Net weight (kg) | 0,315 | 0,315 | 3,15 |
| Gross weight (kg) | 0,315 | 0,315 | 3,45 |
- REACH conformity declaration (de)
- REACH conformity declaration (en)
- REACH conformity declaration (sp)
- REACH conformity declaration (fr)
- REACH conformity declaration (it)
- REACH conformity declaration (nl)
- REACH conformity declaration (pl)
- RoHS conformity declaration (de)
- RoHS conformity declaration (en)
- RoHS conformity declaration (sp)
- RoHS conformity declaration (fr)
- RoHS conformity declaration (it)
- RoHS conformity declaration (nl)
- RoHS conformity declaration (pl)
- Conflict minerals declaration (de)
- Conflict minerals declaration (en)
- Conflict minerals declaration (sp)
- Conflict minerals declaration (fr)
- Conflict minerals declaration (it)
- Conflict minerals declaration (nl)
- Conflict minerals declaration (pl)
- Technical data sheet (de)
- Technical data sheet (en)
- Technical data sheet (sp)
- Technical data sheet (fr)
- Technical data sheet (it)
- Technical data sheet (nl)
- Technical data sheet (pl)
- Image movie (de)
- Image movie (en)
- Image movie (fr)
- POP conformity declaration (de)
- POP conformity declaration (en)
- ROHS-Declaration (-)
- Conflict-Minerals-Declaration (-)
- REACH-Declaration (-)
- POP-Declaration (-)

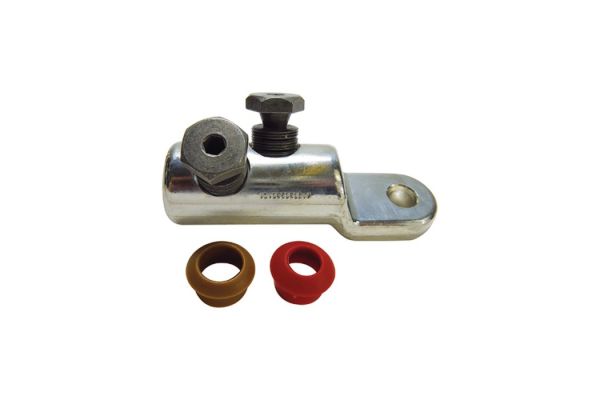

- Family image
