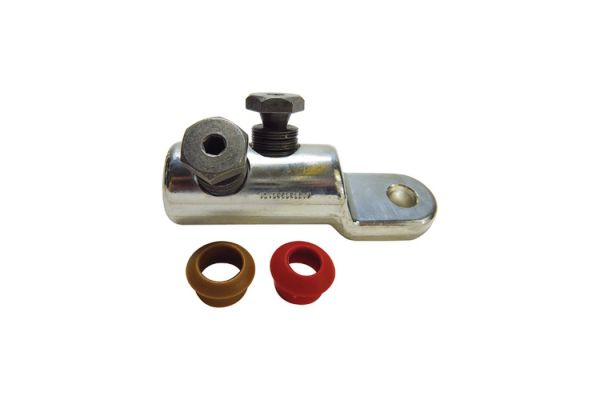

SK-V-AS 16-95
Screw cable lug for Cu and Al
longitudinally sealed, with shear head bolts
Art. no.
195308
Product family | SK-V-AS |
---|---|
Main description | Screw cable lug for Cu and Al |
Sub description | longitudinally sealed, with shear head bolts |
Family description | Screw cable lugs for aluminium- and copper conductors RM/SE, for a safe hold of the cable, designed for indoor and outdoor terminations. |
Test standards | IEC 61238-1 |
---|---|
Materials | Aluminium tin-plated |
Length L | 60 mm |
Length L1 | 32 mm |
Diameter D1 | 12,5 mm |
Diameter D2 | 13 mm |
Diameter D3 | 24 mm |
Number of bolts | 1 Pieces |
Delivery scope | Screw cable lug, Assembly instructions | ||
---|---|---|---|
Country of origin | Germany | ||
Customs tariff number | 85369010 | ||
EAN/GTIN | 4010311053578 | ||
Packaging type | Piece | Bag1 | Case |
Content quantity | 1 | 1 | 100 |
Unit of measure | Piece | Piece | Piece |
Lenght (mm) | 75 | 75 | 310 |
Width (mm) | 30 | 30 | 160 |
Height (mm) | 40 | 40 | 100 |
Net weight (kg) | 0,072 | 0,072 | 7,2 |
Gross weight (kg) | 0,072 | 0,072 | 7,5 |
