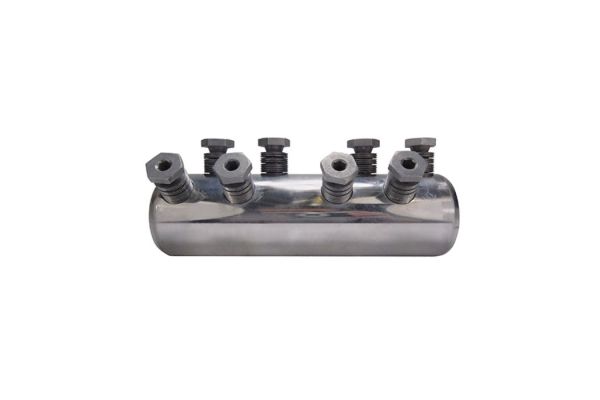

SV-V-AS 185-400
Screw connector for Cu and Al
longitudinally sealed with separator, with shear head bolts
Art. no.
195306
| Product family | SV-V-AS |
|---|---|
| Main description | Screw connector for Cu and Al |
| Sub description | longitudinally sealed with separator, with shear head bolts |
| Family description | For connecting various conductor types and materials, ideal for connecting identical and different conductor cross-sections. |
| Nominal cross section RM min | 185 mm² |
|---|---|
| Nominal cross section RM max | 400 mm² |
| Length L | 170 m |
| Length L1 | 82 mm |
| Diameter D1 | 26 mm |
| Diameter D3 | 42 mm |
| Number of bolts | 6 Pieces |
| Country of origin | Germany | ||
|---|---|---|---|
| Customs tariff number | 85359000 | ||
| EAN/GTIN | 4010311053554 | ||
| Packaging type | Piece | Bag1 | Case |
| Content quantity | 1 | 1 | 3 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 173 | 173 | 210 |
| Width (mm) | 91 | 91 | 160 |
| Height (mm) | 52 | 52 | 190 |
| Net weight (kg) | 0,721 | 0,721 | 2,163 |
| Gross weight (kg) | 0,721 | 0,721 | 2,363 |
