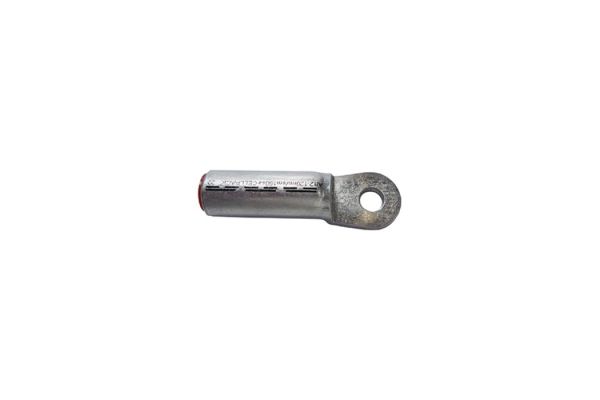

DK-AL-LD 95/12
Compression cable lug Al
longitudinally sealed for low and medium voltage
Art. no.
194941
| Product family | DK-AL-LD |
|---|---|
| Main description | Compression cable lug Al |
| Sub description | longitudinally sealed for low and medium voltage |
| Family description | Cable lug (hexagonally compressed) for aluminium conductors, suitable for indoor and outdoor cable terminations. |
| Notes | To be used with suitable crimping tool with DIN inserts |
| Applications | Cable lug for aluminium conductor RM/SM (Class 2), RE and SE (Class 1) according to DIN EN 60228 (VDE 0295) |
| Test standards | DIN 46329 |
|---|---|
| Materials | Blank aluminium |
| Length L | 75 mm |
| Width B | 25 mm |
| Diameter D1 | 12,6 mm |
| Diameter D2 | 13 mm |
| Diameter D3 | 22 mm |
| Nominal cross section RM/SM | 95 mm² |
| Nominal cross section SE | 120 mm² |
| Press die code K | 22 mm |
| Length A | 56 mm |
| Delivery scope | Compression cable lug | ||
|---|---|---|---|
| Country of origin | Czech Republic | ||
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311052892 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 50 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 90 | 90 | 210 |
| Width (mm) | 25 | 25 | 160 |
| Height (mm) | 22 | 22 | 190 |
| Net weight (kg) | 0,055 | 0,055 | 2,75 |
| Gross weight (kg) | 0,055 | 0,055 | 3,05 |
