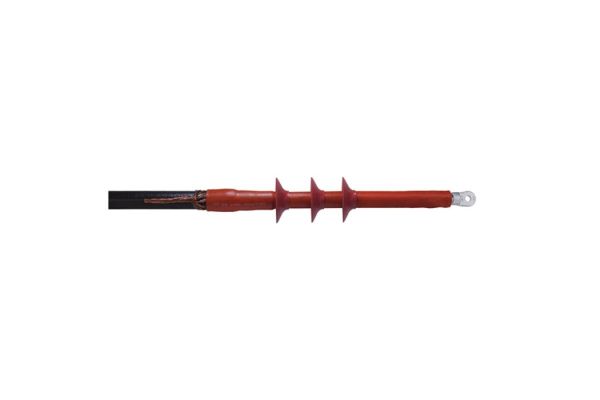

CHE-F 36kV 150-400
1-core outdoor cable termination
for 1-core polymeric cables
Art. no.
194070
| Product family | CHE-F |
|---|---|
| Main description | 1-core outdoor cable termination |
| Sub description | for 1-core polymeric cables |
| Family description | Hybrid cable terminations CHE-F are suitable for all 1-core polymeric-insulated cables (PVC, PE, XLPE, EPR) with different types of semi-conductive layers (graphitecoated, removable or strippable) and screen design (copper wire or tape). Suitable for compression or screw cable lugs. |
| Notes | Can be used also for cables Um = 7,2 kV, then the minimum diameter over conductor insulation has to be checked. |
| Optional accessory | EGA earthing kit for cables with tape screen (see Connecting technology), Compression cable lugs (see Connecting technology) |
| Characteristics | Flexible silicone stress control elements ensure reliable stress control under all operating conditions, Combination of slip-on and heat shrinkable components, Wide cross-section range, Quick, safe and easy assembly, Ready for immediate operation |
| Applications | Outdoor |
| Voltage levels | U0/U (Um) 18/30 (36) kV - 19/33 (36) kV |
|---|---|
| Test standards | CENELEC HD 629.1 |
| Length L | 700 mm |
| Diameter over core insulation after removal of the outer conductive layer min | 27,3 mm |
| Diameter over core insulation after removal of the outer conductive layer max | 27,3 mm |
| Number of sheds per phase | 4 Pieces |
| Diameter shed | 115 mm |
| Nominal cross section 36 kV min | 150 mm² |
| Nominal cross section 36 kV max | 400 mm² |
| Delivery scope | Heat shrinkable tube (tracking resistant), Silicone field control elements, Silicone sheds, 1 Set for 3 phases, Sealing tape, Assembly material, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 85469090 | ||
| EAN/GTIN | 4010311047096 | ||
| Packaging type | Piece | Carton | Pal. OW |
| Content quantity | 1 | 1 | 25 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 730 | 730 | 1200 |
| Width (mm) | 231 | 231 | 800 |
| Height (mm) | 188 | 188 | 1130 |
| Net weight (kg) | 2,459 | 2,459 | 61,475 |
| Gross weight (kg) | 2,459 | 2,459 | 79,675 |
