SMHA4 95-300

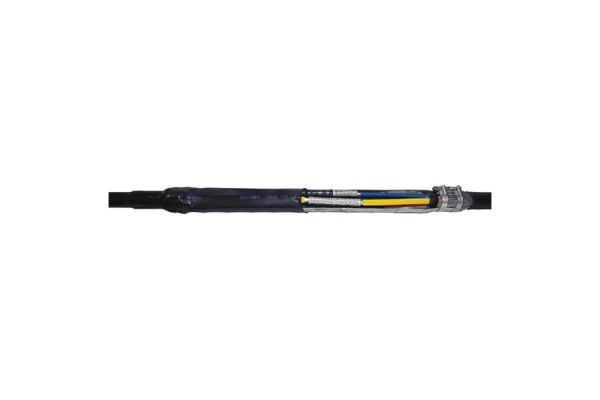

Heat shrinkable straight-through joint
for tape and wire armoured polymeric cables
Art. no.
174183
| Product family | SMHA4 |
|---|---|
| Product family | SMHA4 |
| Main description | Heat shrinkable straight-through joint |
| Sub description | for tape and wire armoured polymeric cables |
| Family description | Universally suitable for connecting armoured polymeric cables insulated with PVC, PE and XLPE (e.g. N(A)YY, NYM, TT). Suitable for compression connectors on aluminium and copper conductors. |
| Optional accessory | Compression connectors (see Connecting technology) |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Length L1 | 1000 mm |
| Nominal cross section Polymeric cable armoured per conductor 4x min | 95 mm² |
| Nominal cross section Polymeric cable armoured per conductor 4x max | 300 mm² |
| Delivery scope | Outer sleeve, Inner sleeves, Armour crossover kit, Cleaning tissue, Emery cloth, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39173900 | ||
| EAN/GTIN | 4010311106076 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Bag1 | Pal. EU |
| Base quantity | 1 | 1 | 30 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 1100 | 1100 | 1200 |
| Width (mm) | 170 | 170 | 800 |
| Height (mm) | 135 | 135 | 1130 |
| Net weight (kg) | 1,593 | 1,593 | 47,79 |
| Gross weight (kg) | 1,593 | 1,593 | 76,79 |
