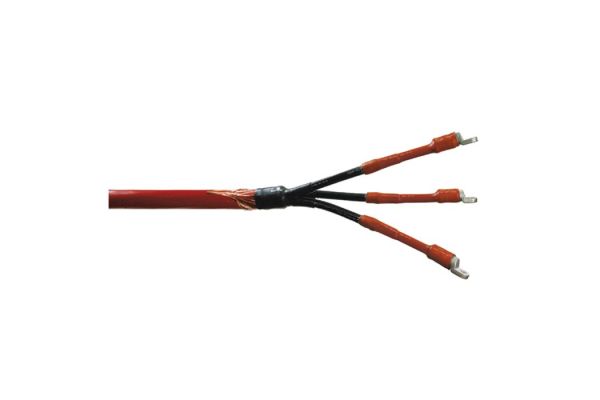

CHE-3I(T) 24kV 25-70
3-core indoor cable termination
for 3-core trailing cables
Art. no.
167690
| Product family | CHE-3I (T) |
|---|---|
| Main description | 3-core indoor cable termination |
| Sub description | for 3-core trailing cables |
| Family description | Combination of slip-on and heat shrinkable components for 3-core trailing cables. Suitable for compression or screw cable lugs. |
| Notes | Other cable terminations available on request. |
| Optional accessory | Cable lugs (see Connecting technology) |
| Characteristics | Flexible silicone stress control elements ensure reliable stress control under all operating conditions, Wide cross-section range, Quick, safe and easy assembly, Ready for immediate operation |
| Applications | Indoor |
| Voltage levels | U0/U (Um) 12/20 (24) kV - 12,7/22 (24) kV |
|---|---|
| Nominal cross section 36 kV min | 25 mm² |
| Nominal cross section 36 kV max | 70 mm² |
| Delivery scope | Spreader cap, Heat shrinkable tube (tracking resistant), Heat shrinkable tube medium-walled, Silicone field control elements, Silicone sheds, Sealing tape, Assembly material, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 85469090 | ||
| EAN/GTIN | 4010311028866 | ||
| Packaging type | Piece | Carton | Pal. OW |
| Content quantity | 1 | 1 | 36 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 435 | 435 | 1200 |
| Width (mm) | 175 | 175 | 800 |
| Height (mm) | 175 | 175 | 1130 |
| Net weight (kg) | 1,602 | 1,602 | 57,672 |
| Gross weight (kg) | 1,602 | 1,602 | 75,872 |
