CPB 5 (Set)
Heat shrink torch kit
for installation of heat shrinkable products
Art. no.
146765
| Product family | Tool Roofing torch |
|---|---|
| Main description | Heat shrink torch kit |
| Sub description | for installation of heat shrinkable products |
| Family description | Heat shrink torch kit specifically for assembling heat shrink products, includes various shrink torches and components (see scope of delivery). |
| Notes | Warning: Liquid gas is heavier than air. Strictly adhere to safety instructions provided with heat shrink torch kit., Individual components may also be ordered separately., The date of manufacture is printed on each propane hose. However, there are no legal regulations for the shelf life., All refillable gas cylinders have a manufacturing date in the base of the gas cylinder. A recurring type test is mandatory after 10 years. |
| Characteristics | User-friendly rotating tube connector, Gas supply shuts off automatically if burner head is not installed, Minimal risk of overheating, Flame extinguishes immediately upon releasing push button, Continuously adjustable flame, Bayonet fitting facilitates substitution of burner head, Quick-starting piezo ignition |
| Applications | Suitable for heat shrinkable tubes, Shrinking of heat shrinkable polyolefine products (caps, sleeves etc.) |

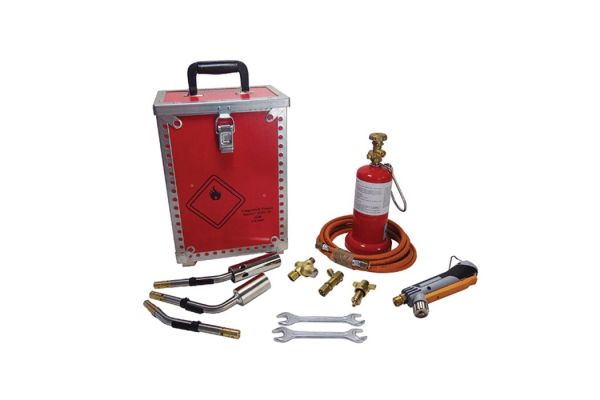

| Delivery scope | Wooden case with aluminium profile, Handle CPB 5/6 with piezo ignition, Needle point burner (with elbow), Heat shrink burner (with elbow), Hot-air torch (with elbow), Gas tube HD 4.4 R 3/8“ li x R 3/8“ li, Anti-rupture device for tubing R 3/8” x 3/8” li, Pressure controller device R 3/8“ x 3/8“ li, Pressure controller DIN/Combo 21.8-14 LH x R 3/8 LH | |
|---|---|---|
| Shelf life description | Unlimited shelf life | |
| Country of origin | Estonia | |
| Customs tariff number | 84161090 | |
| EAN/GTIN | 4010311015057 | |
| Packaging type | Piece | Carton |
| Content quantity | 1 | 1 |
| Unit of measure | Piece | Piece |
| Lenght (mm) | 428 | 428 |
| Width (mm) | 292 | 292 |
| Height (mm) | 202 | 202 |
| Net weight (kg) | 5,657 | 5,657 |
| Gross weight (kg) | 5,657 | 5,657 |
