| Product family | KS |
|---|---|

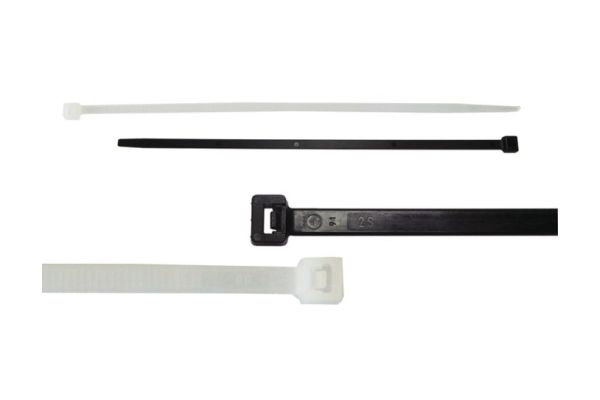

| Main description | Cable ties |
| Sub description | Standard |
| Family description | Cable ties for quick and secure bundling, standard version. |
| Notes | Under standard conditions 9,81 N correspond to 1 kg |
| Characteristics | Smooth, rounded edges for safe and easy handling and assembly, Internal gearing and rounded-off end to facilitate take-up, insertion and tightening, Resistant to alkaline earth elements, Resistant to mould and oil, Stabilized against UV rays, Resistant to dilute acids and alkalis, Halogen-free, Flame retardant, Silicone free |
| Applications | Bundling, Affixing |
| Test standards | EN 62275 |
|---|---|
| Materials | Polyamide 6.6 |
| Holding force min | 588 N |
| Bundle diameter max | 220 mm |
| Length L | 750 mm |
| Width B | 7,5 mm |
| Colours | natural color |
| Flammability rating | UL 94 V2 |
| Mounting temperature min | -5 °C |
| Mounting temperature max | 40 °C |
| Operation temperature min. | -40 °C |
| Operation temperature max. | 85 °C |
| Delivery scope | Cable ties | ||||
|---|---|---|---|---|---|
| Shelf life description | At 50 % relative humidity, After opening the bag, must be used rapidly | ||||
| Storage temperatur max | 23 °C | ||||
| Country of origin | Italy | ||||
| Customs tariff number | 39269097 | ||||
| EAN/GTIN | 4010311007083 | ||||
| Packaging type | Piece | Bag | Pack | Carton | Pal. OW |
| Content quantity | 1 | 100 | 100 | 1500 | 18000 |
| Unit of measure | Piece | Piece | Piece | Piece | Piece |
| Lenght (mm) | 815 | 820 | 820 | 800 | 1200 |
| Width (mm) | 15,9 | 155 | 155 | 300 | 800 |
| Height (mm) | 7 | 30 | 30 | 300 | 1200 |
| Net weight (kg) | 0,012 | 1,2 | 1,2 | 18 | 216 |
| Gross weight (kg) | 0,012 | 1,205 | 1,205 | 18,3 | 234,2 |
