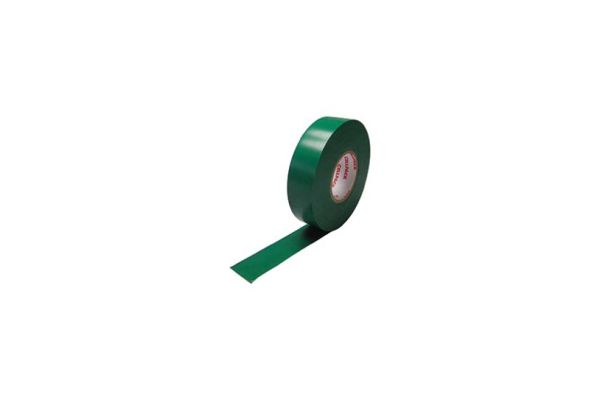

No. 128 green/RAL 6026
PVC insulation tape thin
for marking bundling and insulating
Art. no.
145814
| Product family | No. 128 |
|---|---|
| Main description | PVC insulation tape thin |
| Sub description | for marking bundling and insulating |
| Family description | High-quality, flexible, UV-resistant PVC insulation tape for the electrical and telecommunications sector. |
| Characteristics | Synthetic rubber adhesive, Very good resistance to abrasion, corrosion and moisture, Stabilized against UV rays, High flexibility, Withstands high electrical stresses, Good adhesive properties, Easy processing, Oil-resistant, Resistant to dilute acids and alkalis |
| Applications | Sealing, Padding of cable insulation, Bundling, Reinforcing, As insulation of electrical and telecommunication cables, Colour-coding |
| Test standards | IEC 60454-3-1-5 |
|---|---|
| Materials | PVC |
| Length L | 10 m |
| Width B | 19 mm |
| Thickness | 0,15 mm |
| Colours | green |
| Adhesive strength | 1,8 N/cm |
| Adhesive strength (associated standard) | IEC 60454-2 |
| Elongation at break | 170 % |
| Elongation at break (associated standard) | IEC 60454-2 |
| Tensile strength at break | 30 N/cm |
| Tensile strength at break (associated standard) | IEC 60454-2 |
| Unwinding force | 1,8 N/cm |
| Unwinding force (associated standard) | IEC 60454-2 |
| Operation temperature min. | 0 °C |
| Operation temperature max. | 90 °C |
| Operation temperature (associated standard) | IEC 60454-2 |
| Dielectric strength | 40 kV/mm |
| Dielectric strength (associated standard) | IEC 60454-2 |
| Delivery scope | PVC insulation tape | |||
|---|---|---|---|---|
| Shelf life | 24 Month | |||
| Storage temperatur min | 10 °C | |||
| Storage temperatur max | 25 °C | |||
| Country of origin | Italy | |||
| Customs tariff number | 39191012 | |||
| EAN/GTIN | 4010311013770 | |||
| Packaging type | Piece | Roll | Bundle | Carton |
| Content quantity | 1 | 1 | 10 | 200 |
| Unit of measure | Piece | Piece | Piece | Piece |
| Lenght (mm) | 62 | 62 | 62 | 310 |
| Width (mm) | 62 | 62 | 62 | 235 |
| Height (mm) | 20,7 | 20,7 | 207 | 215 |
| Net weight (kg) | 0,035 | 0,035 | 0,35 | 7 |
| Gross weight (kg) | 0,035 | 0,035 | 0,355 | 7,3 |
