SMH4 6-10 E90

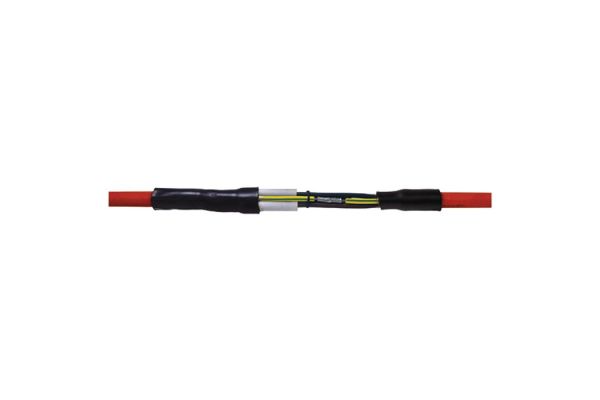

Heat shrinkable straight-through joint
for cable systems E90
Art. no.
145655
| Product family | SMH…E90, SMHC…E90 |
|---|---|
| Main description | Heat shrinkable straight-through joint |
| Sub description | for cable systems E90 |
| Family description | For connecting security cables type NHXH and NHXCH, anywhere where they are required, for example, in power plants, chemical plants, public buildings, airports, tunnels, off-shore installations, fire alarm systems, stairwells, elevator shafts. Suitable for compression connectors. |
| Optional accessory | Compression connectors (see Connecting technology) |
| Characteristics | Compact dimensions, Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Fire-resistant (see tests), Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, Low smoke and gas emission |
| Applications | Indoor, Outdoor, Underground, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | DIN VDE 0472-814, DIN 4102-12, IEC 60331, IEC 60332 |
| Length L1 | 380 mm |
| Nominal cross section Polymeric cable unarmoured per conductor 4x min | 6 mm² |
| Nominal cross section Polymeric cable unarmoured per conductor 4x max | 10 mm² |
| Delivery scope | Outer sleeve, Inner sleeves, Insulating tubes, Cleaning tissue, Emery cloth, Assembly instructions | |
|---|---|---|
| Shelf life description | Unlimited shelf life | |
| Country of origin | Germany | |
| Customs tariff number | 39173900 | |
| EAN/GTIN | 4010311021409 | |
| Packaging type | Piece | Bag1 |
| Content quantity | 1 | 1 |
| Unit of measure | Piece | Piece |
| Lenght (mm) | 402 | 402 |
| Width (mm) | 223 | 223 |
| Height (mm) | 67 | 67 |
| Net weight (kg) | 0,238 | 0,238 |
| Gross weight (kg) | 0,238 | 0,238 |
