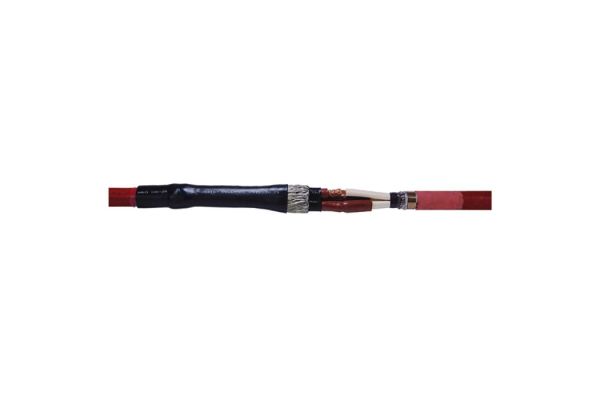

SMH3 25-70 MS6
3-core straight-through joint
for armoured 3-core polymeric cables up to 7.2 kV
Art. no.
145630
| Product family | SMH3...MS6 |
|---|---|
| Main description | 3-core straight-through joint |
| Sub description | for armoured 3-core polymeric cables up to 7.2 kV |
| Family description | Straight-through joints SMH3...MS6 are suitable for armoured 3-core polymericinsulated cables (PVC, PE, XLPE, EPR) without an outer semi-conductive layer. They allow the connection of cables with di erent cross sections and conductor materials even with different cable design. Suitable for compression connectors. |
| Optional accessory | Connectors (see Connecting technology) |
| Characteristics | Compact dimensions, Wide cross-section range, Ready for immediate operation, High mechanical strength, Quick, safe and easy assembly |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts |
| Voltage levels | U0/U (Um) 3,6/6 (7,2) kV - 3,8/6,6 (7,2) kV |
|---|---|
| Diameter connector max | 20 mm |
| Length Connector 12kV max | 110 mm |
| Length L | 850 mm |
| Nominal cross section Polymeric cable armoured min | 25 mm² |
| Nominal cross section Polymeric cable armoured max | 70 mm² |
| Delivery scope | Thick wall heat shrinkable outer tube with hot melt adhesive, Inner sheath sleeve, Copper braid tube, Pressure spring, Cleaning tissue, Emery cloth, Assembly instructions | |
|---|---|---|
| Shelf life description | Unlimited shelf life | |
| Country of origin | Germany | |
| Customs tariff number | 39173900 | |
| EAN/GTIN | 4010311004280 | |
| Packaging type | Piece | Bag1 |
| Content quantity | 1 | 1 |
| Unit of measure | Piece | Piece |
| Lenght (mm) | 931 | 931 |
| Width (mm) | 191 | 191 |
| Height (mm) | 135 | 135 |
| Net weight (kg) | 1,084 | 1,084 |
| Gross weight (kg) | 1,084 | 1,084 |
