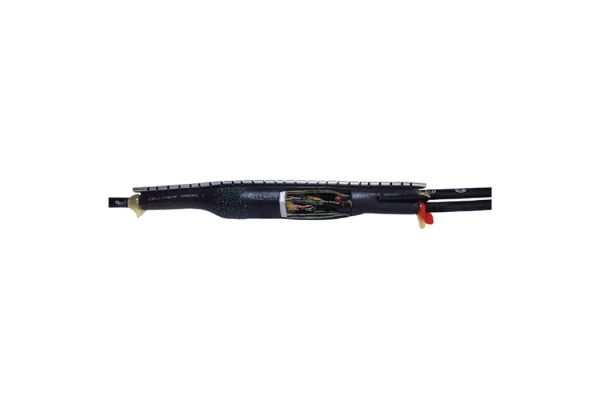

VASMI 1 SRT
Heat shrinkable straight-through joint
with temperature colour indicator for telecommunication cables
Art. no.
145562
| Product family | VASMI |
|---|---|
| Product family | VASMI |
| Main description | Heat shrinkable straight-through joint |
| Sub description | with temperature colour indicator for telecommunication cables |
| Family description | For connecting or branching telecommunication cables insulated with PVC or PE (e.g. A-2YF(L)2Y, A-02YSF(L)2Y, A-PWE2Y, A-PM, A-PM2Y, A-PMbc). Suitable for wire connectors. |
| Optional accessory | Assembly kit MSFA (required for each branch), Wire connectors AVS (see Connecting technology) |
| Characteristics | Compact dimensions, With temperature colour indicator, Suitable for cut and uncut cables, Removable (for repairs or switch-over), Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Waterproof and moisture-resistant |
| Applications | Indoor areas (also with high humidity levels), Outdoor, Underground, Water, Installation ducts, Ductwork |
| Length L1 | 330 mm |
|---|---|
| Diameter D1 over protective liner | 43 mm |
| Diameter cable min | 8 mm |
| Diameter cable max | 35 mm |
| Telecommunication cable spliced with wire connector Number of wire pairs 0,4 mm max | 30 Pieces |
| Telecommunication cable spliced with wire connector Number of wire pairs 0,6 mm max | 20 Pieces |
| Telecommunication cable spliced with wire connector Number of wire pairs 0,8 mm max | 10 Pieces |
| Telecommunication cable spliced with conductor connecting blocks Number of wire pairs 0,4 mm max | 40 Pieces |
| Telecommunication cable spliced with conductor connecting blocks Number of wire pairs 0,6 mm max | 30 Pieces |
| Telecommunication cable spliced with conductor connecting blocks Number of wire pairs 0,8 mm max | 20 Pieces |
| Delivery scope | Heat shrinkable sleeve, Flexible locking bar, Protective liner, Drying agent, Shield continuity wire with clamps, Fire protection film, PVC insulation tape, Cleaning tissue, Emery cloth, Assembly instructions | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Germany | ||
| Customs tariff number | 39173900 | ||
| EAN/GTIN | 4010311017228 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Bag1 | Carton |
| Base quantity | 1 | 1 | 100 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 362 | 362 | 810 |
| Width (mm) | 224 | 224 | 610 |
| Height (mm) | 37 | 37 | 525 |
| Net weight (kg) | 0,244 | 0,244 | 24,4 |
| Gross weight (kg) | 0,244 | 0,244 | 24,7 |
