SMH 12/14 1.5-2.5

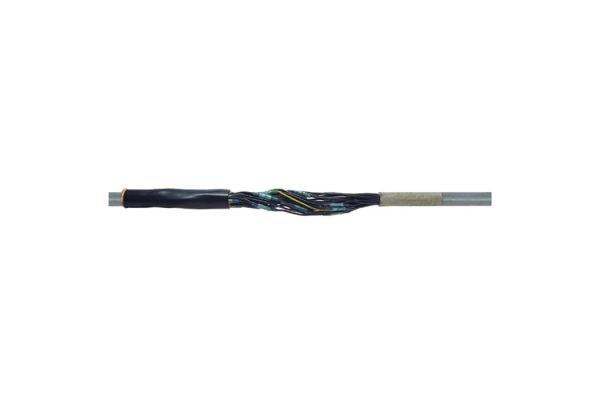

Heat shrinkable straight-through joint
with crimp connectors for control cables and signal cables
Art. no.
145489
More Information
Product family SMH
Main description Heat shrinkable straight-through joint
Sub description with crimp connectors for control cables and signal cables
Family description Universally suitable for connecting polymeric cables or conductors insulated with PVC, PE and XLPE (e.g. N(A)YY, NYM, TT). Suitable for compression connectors on aluminium or copper cables.
Characteristics Compact dimensions, Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Transversely waterproof, High electrical insulating values, High mechanical strength
Applications Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork
More Information
Voltage levels U0/U (Um) 0,6/1 (1,2) kV
Test standards EN 50393
Length L1 500 mm
Control and signal cable Number of conductors min 12 Stück
Control and signal cable Number of conductors max 14 Stück
Nominal cross section Control and signal cable per conductor min 1,5 mm²
Nominal cross section Control and signal cable per conductor max 2,5 mm²
More Information
Delivery scope Outer sleeve, Inner sleeves, Heat shrinkable crimp connectors, Cleaning tissue, Emery cloth, Assembly instructions
Shelf life description Unlimited shelf life
Country of origin Germany
Customs tariff number 39173900
EAN/GTIN 4010311005348
Alternative quantity 1 1 1
Alternative unit of measure Piece Bag1 Case
Base quantity 1 1 10
Base unit of measure Piece Piece Piece
Lenght (mm) 510 510 630
Width (mm) 80 80 175
Height (mm) 50 50 175
Net weight (kg) 0,126 0,126 1,26
Gross weight (kg) 0,126 0,126 1,56
