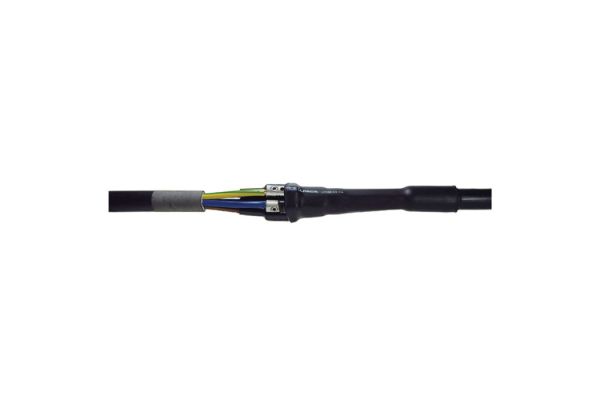

SMH5 6-35 V
Heat shrinkable straight-through joint
with screw connectors for unarmoured polymeric cables and conductors
Art. no.
145363
| Product family | SMH…V |
|---|---|
| Main description | Heat shrinkable straight-through joint |
| Sub description | with screw connectors for unarmoured polymeric cables and conductors |
| Family description | Universally suitable for connecting polymeric cables or conductors insulated with PVC, PE and XLPE (e.g. N(A)YY, NYM, TT). With screw connectors with grub screw,suitable for aluminium and copper conductors. |
| Characteristics | Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Resistant to alkaline earth elements, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength |
| Applications | Indoor, Outdoor, Underground, Water, Installation ducts, Ductwork |
| Voltage levels | U0/U (Um) 0,6/1 (1,2) kV |
|---|---|
| Test standards | EN 50393 |
| Article notes | shear head bolts |
| Length L1 | 500 mm |
| Nominal cross section Polymeric cable unarmoured per conductor 5x min | 6 mm² |
| Nominal cross section Polymeric cable unarmoured per conductor 5x max | 35 mm² |
| Delivery scope | Outer sleeve, Inner sleeves, Screw connector, Allen key, Cleaning tissue, Emery cloth, Assembly instructions | |||
|---|---|---|---|---|
| Shelf life description | Unlimited shelf life | |||
| Country of origin | Germany | |||
| Customs tariff number | 39173900 | |||
| EAN/GTIN | 4010311020617 | |||
| Packaging type | Piece | Bag1 | Carton | Pal. OW |
| Content quantity | 1 | 1 | 5 | 210 |
| Unit of measure | Piece | Piece | Piece | Piece |
| Lenght (mm) | 500 | 500 | 620 | 1200 |
| Width (mm) | 170 | 170 | 170 | 800 |
| Height (mm) | 157 | 157 | 170 | 1130 |
| Net weight (kg) | 0,395 | 0,395 | 1,975 | 82,95 |
| Gross weight (kg) | 0,395 | 0,395 | 1,979 | 101,15 |
