SRUM 32-8

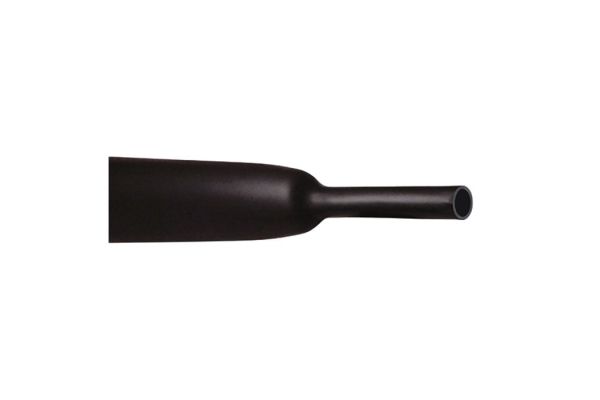

Heat shrinkable medium wall tube
flexible shrink ratio 3 : 1 or 4 : 1 with adhesive
Art. no.
145073
| Product family | SRUM |
|---|---|
| Main description | Heat shrinkable medium wall tube |
| Sub description | flexible shrink ratio 3 : 1 or 4 : 1 with adhesive |
| Family description | The heat shrinkable tubes type SRUM are medium-walled, with thermoplastic adhesive with a shrinkage ratio of 3:1 or 4:1. Typical applications are the protection of cables against moisture and pressure for cables as well as suitable for heat shrinkable joints and terminations. |
| Notes | A standard spool may include sections which have been tied together., Other lengths available on request. |
| Characteristics | Medium wall, With hot melt adhesive, Inscribable, Resistant to chemical agents, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Non-corrosive, Infusible, High flexibility, Superior electrical properties, High tensile strength, Resistant to cold flow (thermally stable), Self-extinguishing |
| Applications | Insulating, Bundling, Marking, Corrosion protection, Mechanical protection |
| Test standards | MIL-I-23053/4 |
|---|---|
| Materials | Cross-linked polyolefin, Free of lead and cadmium |
| Selection Note | spools |
| Length L | 30 m |
| Colours | black |
| Inner diameter before shrinking (mm) | 32 mm |
| Inner diameter after shrinking (mm) | 8 mm |
| Recovered wall thickness | 3,1 mm |
| Elongation at break | 300 % |
| Elongation at break (associated standard) | ASTM D 638 |
| Tensile strength at break | 11 MPa |
| Tensile strength at break (associated standard) | ASTM D 638 |
| Longitudinal shrinkage | +/- 15 % |
| Longitudinal shrinkage (associated standard) | ASTM D 2671 |
| Operating temperature range min | -55 °C |
| Operating temperature range max | 110 °C |
| Operating temperature range (associated standard) | IEC 216 |
| Shrinkage temperature | > 110 °C |
| Burning behaviour | self-extinguishing |
| Burning behaviour (associated standard) | UL 224 |
| Flexibility at low temperatures | -55 °C |
| Flexibility at low temperatures (associated standard) | ASTM D 2671 |
| Specific volume resistivity | 10¹⁴ Ω cm |
| Specific volume resistivity (associated standard) | ASTM D 257 |
| Dielectric strength | 15 kV/mm |
| Dielectric strength (associated standard) | ASTM D 2671 |
| Corrosion | none |
| Corrosion (associated standard) | ASTM D 2671 |
| Resistance to fungus and decay | No growth |
| Resistance to fungus and decay (associated standard) | AMS-DTL-7444 |
| Delivery scope | Medium wall heat shrinkable tube on spool | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Poland | ||
| Customs tariff number | 39173200 | ||
| EAN/GTIN | 4010311038544 | ||
| Packaging type | Meter | Coil | Carton |
| Content quantity | 1 | 30 | 120 |
| Unit of measure | Meter | Meter | Meter |
| Lenght (mm) | 1000 | 390 | 395 |
| Width (mm) | 0 | 390 | 395 |
| Height (mm) | 0 | 72 | 395 |
| Net weight (kg) | 0,118 | 3,54 | 14,16 |
| Gross weight (kg) | 0,118 | 3,549 | 14,46 |
