SR3 33-8

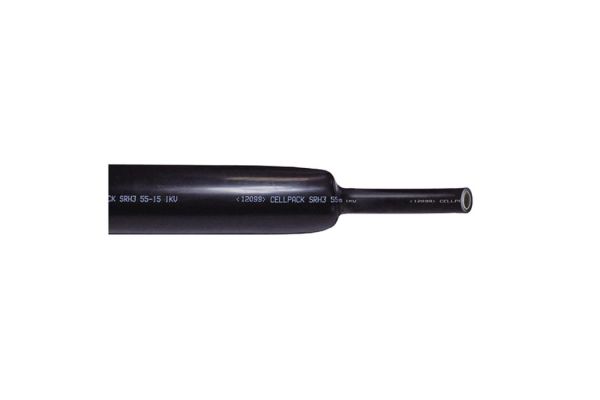

Heat shrinkable thick wall tube
halogen-free shrink ratio 3 : 1 with or without adhesive
Art. no.
144613
| Product family | SR3, SRH3 |
|---|---|
| Main description | Heat shrinkable thick wall tube |
| Sub description | halogen-free shrink ratio 3 : 1 with or without adhesive |
| Family description | The heat shrinkable tubes type SR3/SRH3 are thick-walled, without/with thermoplastic adhesive with a shrinkage ratio of 3:1. Typical applications are the protection of cables against moisture and pressure for cables as well as suitable for heat shrinkable joints and terminations. |
| Notes | Other lengths available on request. |
| Characteristics | Thick wall, Inscribable, Resistant to chemical agents, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Non-corrosive, Infusible, Halogen-free, Superior electrical properties, High tensile strength, Resistant to cold flow (thermally stable) |
| Applications | Insulating, Protection against moisture and pressure, Suitable for heat shrinkable joints and terminations |
| Test standards | IEC 60684-2 |
|---|---|
| Materials | Cross-linked polyolefin, Free of lead and cadmium |
| Selection Note | without adhesive |
| Length L | 1 m |
| Colours | black |
| Inner diameter before shrinking (mm) | 33 mm |
| Inner diameter after shrinking (mm) | 8 mm |
| Recovered wall thickness | 4 mm |
| Hardness | 55 Shore D |
| Hardness (associated standard) | DIN 53505 |
| Elongation at break | 350 % |
| Elongation at break (associated standard) | IEC 60684-2 |
| Tensile strength at break | 13 MPa |
| Tensile strength at break (associated standard) | IEC 60684-2 |
| Longitudinal shrinkage | +/- 10 % |
| Longitudinal shrinkage (associated standard) | IEC 60684-2 |
| Shrink ratio | 3 : 1 |
| Shrink ratio (associated standard) | IEC 60684-2 |
| Eccentricity expanded | 50 % |
| Eccentricity recovered | 85 % |
| Eccentricity (associated standard) | IEC 60684-2 |
| Operating temperature range min | -40 °C |
| Operating temperature range max | 120 °C |
| Operating temperature range (associated standard) | IEC 60684-2 |
| Shrinkage temperature | > 125 °C |
| Burning behaviour | not self-extinguishing |
| Burning behaviour (associated standard) | IEC 60684-2 |
| Flexibility at low temperatures | -40 °C |
| Flexibility at low temperatures (associated standard) | IEC 60684-2 |
| Thermal ageing (168 h at 150 °C): Elongation at break | 250 % |
| Thermal ageing (168 h at 150 °C): Tensile strength at break | 12 MPa |
| Thermal ageing (168 h at 150 °C) (associated standard) | IEC 60684-2 |
| Operation temperature min. | -40 °C |
| Operation temperature max. | 120 °C |
| Operation temperature (associated standard) | IEC 60684-2 |
| Specific volume resistivity | 10¹⁴ Ω cm |
| Specific volume resistivity (associated standard) | IEC 60684-2 |
| Dielectric strength | 25 kV/mm |
| Dielectric strength (associated standard) | IEC 60684-2 |
| Corrosion | none |
| Corrosion (associated standard) | IEC 60684-2 |
| Resistance to fungus and decay | Rate 1 |
| Resistance to fungus and decay (associated standard) | IEC 60684-2 |
| Delivery scope | Thick wall heat shrinkable tube in lengths | ||||
|---|---|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||||
| Country of origin | Germany | ||||
| Customs tariff number | 39173200 | ||||
| EAN/GTIN | 4010311024653 | ||||
| Packaging type | Piece | Bag1 | Bag | Pack | Pal. OW |
| Content quantity | 1 | 1 | 10 | 10 | 700 |
| Unit of measure | Piece | Piece | Piece | Piece | Piece |
| Lenght (mm) | 1005 | 1005 | 1200 | 1200 | 1200 |
| Width (mm) | 47 | 47 | 300 | 300 | 800 |
| Height (mm) | 30 | 30 | 250 | 250 | 1200 |
| Net weight (kg) | 0,144 | 0,144 | 1,44 | 1,44 | 100,8 |
| Gross weight (kg) | 0,144 | 0,144 | 1,445 | 1,445 | 119 |
