SRMAHV 72-18 / 500

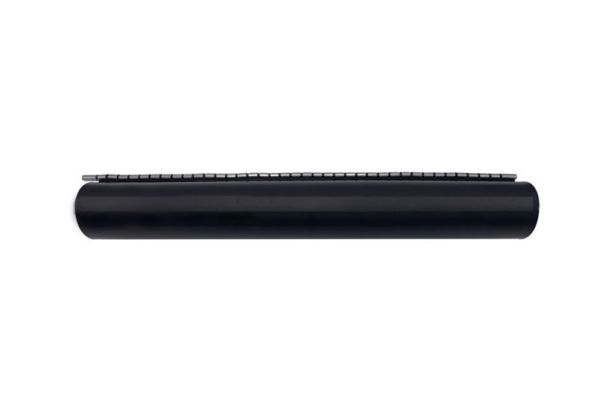

Heat shrinkable repair sleeve
with adhesive and stainless steel channel
Art. no.
More Information
Product family SRMAHV
Main description Heat shrinkable repair sleeve
Sub description with adhesive and stainless steel channel
Family description For repairing damaged sheaths of all polymeric- and rubber-insulated cables and conductors.
Characteristics Medium wall, With hot melt adhesive, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Non-corrosive, Infusible, Halogen-free, Superior electrical properties, High tensile strength, Resistant to cold flow (thermally stable), Maximum inner pressure: 1.5 bar
Applications Sealing, Repair of damaged cable sheaths
More Information
Test standards IEC 60684-2
Materials Cross-linked polyolefin, Free of lead and cadmium
Length L 500 mm
Colours black
Inner diameter before shrinking (mm) 82 mm
Inner diameter after shrinking (mm) 18 mm
Recovered wall thickness 3,4 mm
Application range shrinking min 18 mm
Application range shrinking max 72 mm
Hardness 50 Shore D
Hardness(a ssociated standard) IEC 60684-2
Elongation at break 300 %
Elongation at break (associated standard) IEC 60684-2
Tensile strength at break 13 MPa
Tensile strength at break (associated standard) IEC 60684-2
Longitudinal shrinkage +/- 10 %
Longitudinal shrinkage (associated standard) IEC 60684-2
Shrink ratio 3 : 1
Shrink ratio (associated standard) IEC 60684-2
Operating temperature range min -40 °C
Operating temperature range max 120 °C
Operating temperature range (associated standard) IEC 60684-2
Shrinkage temperature > 125 °C
Flexibility at low temperatures -40 °C
Flexibility at low temperatures (associated standard) IEC 60684-2
Thermal ageing (168 h bei 150 °C): Tensile strength at break 12 MPa
Thermal ageing (168 h bei 150 °C) (associated standard) IEC 60684-2
Specific volume resistivity 10¹⁵ Ω cm
Specific volume resistivity (associated standard) IEC 60684-2
Dielectric strength ​​ 12 kV/mm
Dielectric strength (associated standard) IEC 60684-2
Dielectric constant 5
Dielectric constant (associated standard) IEC 60684-2
Corrosion none
Corrosion (associated standard) IEC 60684-2
Resistance to fungus and decay Rate 1
Resistance to fungus and decay (associated standard) IEC 60684-2
More Information
Delivery scope Heat shrinkable repair sleeve, Stainless steel channel, Assembly instructions
Shelf life description Unlimited shelf life
Country of origin Germany
Customs tariff number 39173900
EAN-UPC 4010311002132
Alternate quantity 1 1 1
Alternative unit of measure Piece Bag1 Pal. OW
Base quantity 1 1 300
Base unit of measure Piece Piece Piece
Lenght 504 504 1200
Width 302 302 800
Height 37 37 1130
Dimension unit Millimetres Millimetres Millimetres
Volume 5,632 5,632 1084,8
Volume unit Cubic decimetres Cubic decimetres Cubic decimetres
Net weight 0,293 0,293 87,9
Gross weight 0,293 0,293 106,1
Weight unit Kilogram Kilogram Kilogram
