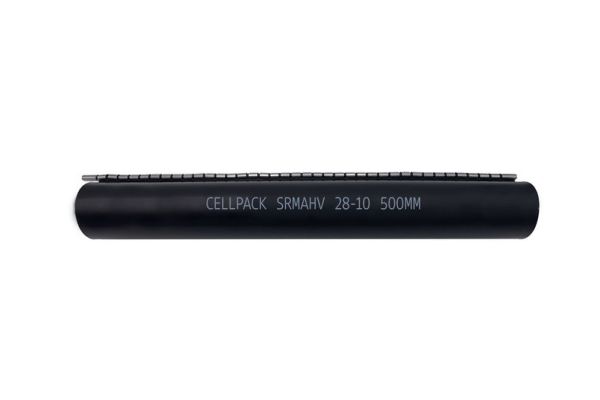

SRMAHV 28-10 / 500
Heat shrinkable repair sleeve
with adhesive and stainless steel channel
Art. no.
143601
Product family | SRMAHV |
---|---|
Main description | Heat shrinkable repair sleeve |
Sub description | with adhesive and stainless steel channel |
Family description | For repairing damaged sheaths of all polymeric- and rubber-insulated cables and conductors. |
Characteristics | Medium wall, With hot melt adhesive, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Non-corrosive, Infusible, Halogen-free, Superior electrical properties, High tensile strength, Resistant to cold flow (thermally stable), Maximum inner pressure: 1.5 bar |
Applications | Sealing, Repair of damaged cable sheaths |
Test standards | IEC 60684-2 |
---|---|
Materials | Cross-linked polyolefin, Free of lead and cadmium |
Length L | 500 mm |
Colours | black |
Inner diameter before shrinking (mm) | 32 mm |
Inner diameter after shrinking (mm) | 10 mm |
Recovered wall thickness | 2,3 mm |
Application range shrinking min | 10 mm |
Application range shrinking max | 28 mm |
Hardness | 50 Shore D |
Hardness (associated standard) | IEC 60684-2 |
Elongation at break | 300 % |
Elongation at break (associated standard) | IEC 60684-2 |
Tensile strength at break | 13 MPa |
Tensile strength at break (associated standard) | IEC 60684-2 |
Longitudinal shrinkage | +/- 10 % |
Longitudinal shrinkage (associated standard) | IEC 60684-2 |
Shrink ratio | 3 : 1 |
Shrink ratio (associated standard) | IEC 60684-2 |
Operating temperature range min | -40 °C |
Operating temperature range max | 120 °C |
Operating temperature range (associated standard) | IEC 60684-2 |
Shrinkage temperature | > 125 °C |
Flexibility at low temperatures | -40 °C |
Flexibility at low temperatures (associated standard) | IEC 60684-2 |
Thermal ageing (168 h at 150 °C): Tensile strength at break | 12 MPa |
Thermal ageing (168 h at 150 °C) (associated standard) | IEC 60684-2 |
Operation temperature min. | -40 °C |
Operation temperature max. | 120 °C |
Operation temperature (associated standard) | IEC 60684-2 |
Specific volume resistivity | 10¹⁵ Ω cm |
Specific volume resistivity (associated standard) | IEC 60684-2 |
Dielectric strength | 12 kV/mm |
Dielectric strength (associated standard) | IEC 60684-2 |
Dielectric constant | 5 |
Dielectric constant (associated standard) | IEC 60684-2 |
Corrosion | none |
Corrosion (associated standard) | IEC 60684-2 |
Resistance to fungus and decay | Rate 1 |
Resistance to fungus and decay (associated standard) | IEC 60684-2 |
Delivery scope | Heat shrinkable repair sleeve, Stainless steel channel, Assembly instructions | |||
---|---|---|---|---|
Shelf life description | Unlimited shelf life | |||
Country of origin | Germany | |||
Customs tariff number | 39173900 | |||
EAN/GTIN | 4010311002019 | |||
Packaging type | Piece | Bag1 | Bundle | Carton |
Content quantity | 1 | 1 | 10 | 250 |
Unit of measure | Piece | Piece | Piece | Piece |
Lenght (mm) | 507 | 507 | 507 | 585 |
Width (mm) | 148 | 148 | 148 | 390 |
Height (mm) | 25 | 25 | 125 | 495 |
Net weight (kg) | 0,186 | 0,186 | 1,86 | 46,5 |
Gross weight (kg) | 0,186 | 0,186 | 1,86 | 46,8 |
