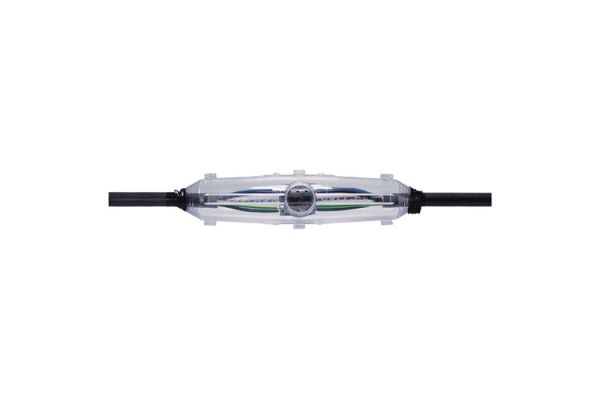

Cast resin straight-through joint
with screw connectors for polymeric cables
Art. no.
131863
More Information
Product family M…V-Euroline
Main description Cast resin straight-through joint
Sub description with screw connectors for polymeric cables
Family description Universally suitable for connecting polymeric cables or conductors insulated with PVC, PE, XLPE and EPR (e.g. N(A)YY, NYM, TT). With screw connectors, suitable for aluminium or copper conductors.
Characteristics Compact dimensions, Splice area visible before casting, High-quality transparent shockproof plastic shell, Resistant to chemical agents, Stabilized against UV rays, Resistant to alkaline earth elements, Longitudinally and transversely watertight, High electrical insulating values, High mechanical strength, Ready for immediate operation, Quick, safe and easy assembly, Large filler aperture to facilitate casting
Applications Indoor, Outdoor, Underground, Water, Installation ducts
Optional accessory Cleaner UNIVERSAL CLEANER 121 (see Accessories)
More Information
Voltage levels U0/U (Um) 0,6/1 (1,2) kV
Test standards EN 50393
Length L 190 mm
Heigth H 50 mm
Diameter D 36 mm
Nominal cross section Polymeric cable unarmoured per conductor 3x min 2 mm²
Nominal cross section Polymeric cable unarmoured per conductor 3x max 6 mm²
Nominal cross section Polymeric cable unarmoured per conductor 4x min 1,5 mm²
Nominal cross section Polymeric cable unarmoured per conductor 4x max 6 mm²
Nominal cross section Polymeric cable unarmoured per conductor 5x min 1,5 mm²
Nominal cross section Polymeric cable unarmoured per conductor 5x max 6 mm²
Diameter cable max 26 mm
Nominal cross section Polymeric cable with concentric conductor per conductor 3x min 1,5 mm²
Nominal cross section Polymeric cable with concentric conductor per conductor 3x max 6 mm²
Nominal cross section Polymeric cable with concentric conductor per conductor 4x min 1,5 mm²
Nominal cross section Polymeric cable with concentric conductor per conductor 4x max 6 mm²
More Information
Delivery scope Cover, Hydrolysis resistance PUR type EG cast resin, Packed in practical and easy-to-use two-chamber bags, Transparent plastic shell, PVC insulation tape, Protective gloves, Screw connector, Spacers, Assembly instructions
Shelf life 40 Month
Country of origin Germany
Customs tariff number 39095090
EAN-UPC 4010311020327
Alternate quantity 1 1 1
Alternative unit of measure Piece Case Pal. OW
Base quantity 1 1 480
Base unit of measure Piece Piece Piece
Lenght 207 207 1200
Width 158 158 800
Height 47 47 1130
Dimension unit Millimetres Millimetres Millimetres
Volume 1,537 1,537 1084,8
Volume unit Cubic decimetres Cubic decimetres Cubic decimetres
Net weight 0,401 0,401 192,48
Gross weight 0,401 0,701 210,68
Weight unit Kilogram Kilogram Kilogram
