UG 1850

More Information
Product family	UG
Main description	Two-component PUR cast resin
Sub description	flame retardant
Family description	Specially developed for use in mining. It meets the requirements for cast resin moulding according to DIN VDE 0291 Section 2 on filling the cable sets or parts thereof for the following types of cables: Power cables with a nominal voltage up to 1 kV - GNH, power cables with a nominal voltage up to 10 kV - GMH and telecommunication and signal cables - GFH.
Notes	Other sizes available on request., The European Commission amended Annex XVII of the REACH Regulation (EC) (new number 74) with Regulation (EU) 2020/1149, which entered into force on 24 August 2020. In accordance with the new REACH Regulation, appropriate training will be required prior to the industrial or professional use of diisocyanates, adhesives and sealants as of 24 August 2023. All information regarding training materials and training courses is available on the ISOPA/ALIPA website https://www.safeusediisocyanates.eu/
Characteristics	Favourable flow properties, High hydrolysis resistance, Stabilized against UV rays, Halogen-free, Resistant to alkaline earth elements, Resistant to chemical agents, Flame retardant, Not harmful to the environment, Low smoke emission in case of fire, No fracturing under electrical stress, Excellent adhesion to all cable materials, No fracturing under mechanical tension, Excellent adhesion to all cable materials, No fracturing under mechanical tension

More Information
Test standards	DIN VDE 0472-804, DIN VDE 0472-814, DIN VDE 0472-813, DIN VDE 0278-631-1
Content	1850 ml
Flash point of cast resin component (open cup)	> 200 °C
Flash point of reactant (open cup)	> 200 °C
Processing time (pot life) 300 ml mixture 5 °C	23 minutes
Processing time (pot life) 300 ml mixture 23 °C	16 minutes
Processing time (pot life) 300 ml mixture 35 °C	12 minutes
Reaction temperature max	78 °C
Total volume shrinkage during curing	2,5 %
Impact strength	> 20 kJ/m²
Water absorption in warm water (42 d at 50 °C)	250 mg
Electrolytic corrosion	A 1,2
1 minute test voltage at 23 °C Test voltage 1 minute at 23 °C	38 kV
1 minute test voltage at 80 °C Test voltage 1 minute at 80 °C	35 kV
Dielectric dissipation factor at 23 °C and 1 kHz	0,02
Dielectric dissipation factor at 23 °C and 50 Hz	0,03
Dielectric dissipation factor at 50 °C and 50 Hz	0,06
Dielectric dissipation factor at 80 °C and 50 Hz	0,15
Dielectric constant at 23 °C and 1 kHz	4,1
Dielectric constant at 23 °C and 50 Hz	4,3
Dielectric constant at 50 °C and 50 Hz	5,5
Dielectric constant at 80 °C and 50 Hz	7,2
Tracking resistance	KA 3c
Hardness	80 Shore D
Density	1,4 g/cm³
Density cured casting compound (associated standard)	ISO 1183-1

More Information

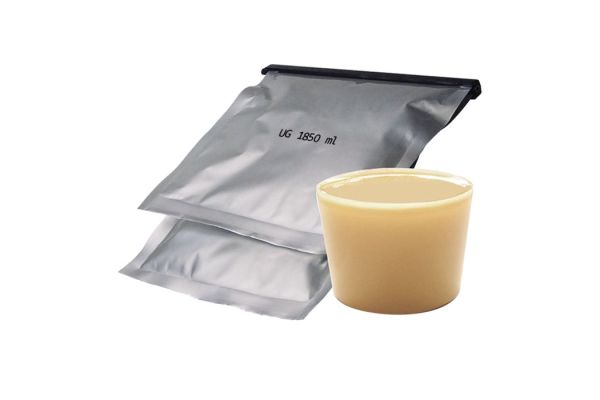

Delivery scope	Cast resin, Packed in practical and easy-to-use two-chamber bags
Shelf life	24 Month
Shelf life description	In aluminium bag
Storage temperatur min	15 °C
Storage temperatur max	35 °C
Country of origin	Germany
Customs tariff number	39095090
EAN/GTIN	4010311086316
Packaging type	Piece	Case	Pal. OW
Content quantity	1	1	100
Unit of measure	Piece	Piece	Piece
Lenght (mm)	339	339	1200
Width (mm)	215	215	800
Height (mm)	55	55	770
Net weight (kg)	2,673	2,673	267,3
Gross weight (kg)	2,673	2,673	285,5
