SB 24-8

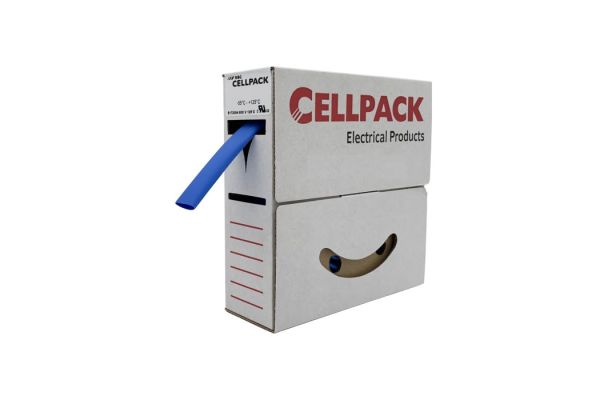

Heat shrinkable tube in dispenser box
thin wall shrink ratio 3 : 1 without adhesive
Art. no.
More Information
Product family SB 3:1
Main description Heat shrinkable tube in dispenser box
Sub description thin wall shrink ratio 3 : 1 without adhesive
Family description The heat shrinkable tubes type SB 3:1 are thin-walled, without thermoplastic adhesive with a shrinkage ratio of 3:1. Typical applications are the protection of cables against chemical influences as well as good mechanical protection.
Notes A standard spool may include sections which have been tied together., See „SR1F3“ heat shrinkable tube for further information on product properties
Characteristics Back-winding mechanism facilitates rolling up of tube, User friendly, notch prevents tube from rolling back into the box, Déroulement facilité, Self-extinguishing (except transparent)
Applications Bundling, Marking, Corrosion protection, Mechanical protection
More Information
Test standards UL E172094, MIL-I-23053/5 Class 1
Materials Cross-linked polyolefin, Free of lead and cadmium
Length L 4 m
Colours blue
Inner diameter before shrinking (mm) 24 mm
Inner diameter after shrinking (mm) 8 mm
Recovered wall thickness 1 mm
Elongation at break 350 %
Elongation at break (associated standard) ASTM D 638
Tensile strength at break 13 MPa
Tensile strength at break (associated standard) ASTM D 638
Longitudinal shrinkage +/- 10 %
Longitudinal shrinkage (associated standard) ASTM D 2671
Shrink ratio 3 : 1
Shrink ratio (associated standard) IEC 811-1-1
Shrinkage temperature > 90 °C
Burning behaviour self-extinguishing
Burning behaviour (associated standard) UL 224
Flexibility at low temperatures -55 °C
Flexibility at low temperatures (associated standard) ASTM D 2671
Operation temperature min. -55 °C
Operation temperature max. 135 °C
Operation temperature (associated standard) IEC 216
Specific volume resistivity 10¹⁴ Ω cm
Specific volume resistivity (associated standard) ASTM D 257
Dielectric strength ​​ 20 kV/mm
Dielectric strength (associated standard) ASTM D 2671
Corrosion none
Corrosion (associated standard) ASTM D 2671
Resistance to fungus and decay No growth
Resistance to fungus and decay (associated standard) AMS-DTL-7444
More Information
Delivery scope Thin wall heat shrinkable tube in dispenser box
Shelf life description Unlimited shelf life
Country of origin Poland
Customs tariff number 39173200
EAN/GTIN 4010311013398
Packaging type Piece Case Carton
Content quantity 1 1 36
Unit of measure Piece Piece Piece
Lenght (mm) 165 165 410
Width (mm) 168 168 410
Height (mm) 55 55 415
Net weight (kg) 0,25 0,25 9
Gross weight (kg) 0,25 0,25 9,3
