SB 1.2-0.6

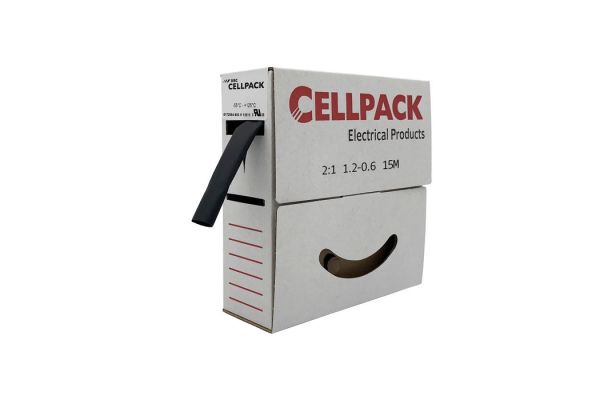

Heat shrinkable tube in dispenser box
thin wall shrink ratio 2 : 1 without adhesive
Art. no.
127020
| Product family | SB 2:1 |
|---|---|
| Main description | Heat shrinkable tube in dispenser box |
| Sub description | thin wall shrink ratio 2 : 1 without adhesive |
| Family description | The heat shrinkable tubes type SB 2:1 are thin-walled, without thermoplastic adhesive with a shrinkage ratio of 2:1. Typical applications are the protection of cables against chemical influences as well as good mechanical protection. |
| Notes | A standard spool may include sections which have been tied together., See „SR1F“ heat shrinkable tube for further information on product properties |
| Characteristics | Back-winding mechanism facilitates rolling up of tube, User friendly, notch prevents tube from rolling back into the box, Déroulement facilité, Self-extinguishing (except transparent) |
| Applications | Bundling, Marking, Corrosion protection, Mechanical protection |
| Test standards | UL E172094, MIL-I-23053/5 Class 1 |
|---|---|
| Materials | Cross-linked polyolefin, Free of lead and cadmium |
| Length L | 15 m |
| Colours | black |
| Inner diameter before shrinking (inch) | 3/64" |
| Inner diameter before shrinking (mm) | 1,2 mm |
| Inner diameter after shrinking (mm) | 0,6 mm |
| Recovered wall thickness | 0,41 mm |
| Elongation at break | 350 % |
| Elongation at break (associated standard) | ASTM D 638 |
| Tensile strength at break | 13 MPa |
| Tensile strength at break (associated standard) | ASTM D 638 |
| Longitudinal shrinkage | +/- 10 % |
| Longitudinal shrinkage (associated standard) | ASTM D 2671 |
| Shrink ratio | 2 : 1 |
| Shrink ratio (associated standard) | IEC 811-1-1 |
| Shrinkage temperature | > 90 °C |
| Burning behaviour | self-extinguishing |
| Burning behaviour (associated standard) | UL 224 |
| Flexibility at low temperatures | -55 °C |
| Flexibility at low temperatures (associated standard) | ASTM D 2671 |
| Operation temperature min. | -55 °C |
| Operation temperature max. | 135 °C |
| Operation temperature (associated standard) | IEC 216 |
| Specific volume resistivity | 10¹⁴ Ω cm |
| Specific volume resistivity (associated standard) | ASTM D 257 |
| Dielectric strength | 20 kV/mm |
| Dielectric strength (associated standard) | ASTM D 2671 |
| Corrosion | none |
| Corrosion (associated standard) | ASTM D 2671 |
| Resistance to fungus and decay | No growth |
| Resistance to fungus and decay (associated standard) | AMS-DTL-7444 |
| Delivery scope | Thin wall heat shrinkable tube in dispenser box | ||
|---|---|---|---|
| Shelf life description | Unlimited shelf life | ||
| Country of origin | Poland | ||
| Customs tariff number | 39173200 | ||
| EAN/GTIN | 4010311035383 | ||
| Packaging type | Piece | Case | Carton |
| Content quantity | 1 | 1 | 36 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 170 | 170 | 410 |
| Width (mm) | 166 | 166 | 410 |
| Height (mm) | 55 | 55 | 415 |
| Net weight (kg) | 0,093 | 0,093 | 3,348 |
| Gross weight (kg) | 0,093 | 0,093 | 3,648 |
