SR1F 6.4-3.2

Heat shrinkable thin wall tube
shrink ratio 2 : 1 without adhesive
Art. no.
126898
Inquiry
Add to Wish List

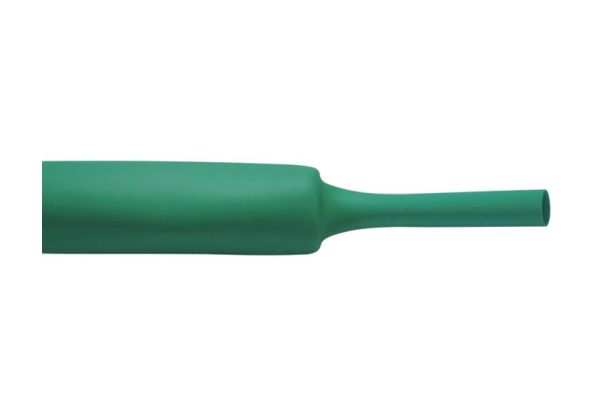

main product photo
More Information
Product family SR1F
Main description Heat shrinkable thin wall tube
Sub description shrink ratio 2 : 1 without adhesive
Family description Warmschrumpfschlauch dünnwandig. Anwendungsgebiete: Isolieren, bündeln, kennzeichnen, Schutz gegen Korrosion, mechanischer Schutz. Eigenschaften: Dünnwandig, ohne thermoplastischen Kleber, beschriftbar, beständig gegen chemische Einflüsse, stabilisiert gegen UV-Strahlen, frei von lackbenetzungsstörenden Substanzen, nicht korrosiv, unschmelzbar, hohe Flexibilität, sehr gute elektrische Eigenschaften, hohe Zugfestigkeit, kaltflussbeständig (wärmeformstabil), selbstverlöschend (außer Transparent).
Characteristics Thin wall, Without adhesive, Inscribable, Resistant to chemical agents, Stabilized against UV rays, Non-corrosive, Free from paint-wetting inhibiting substances, Infusible, High tensile strength, Superior electrical properties, High tensile strength, Resistant to cold flow (thermally stable), High flexibility, Self-extinguishing (except transparent)
Applications Insulating, Bundling, Marking, Corrosion protection, Mechanical protection
Family notes A standard spool may include sections which have been tied together., Other lengths available on request.
More Information
Test standards UL E172094, MIL-I-23053/5 Class 1
Materials Cross-linked polyolefin, Free of lead and cadmium
Selection Note spools
Length L 300 m
Colours green
Inner diameter before shrinking (inch) 1/4"
Inner diameter before shrinking (mm) 6,4 mm
Inner diameter after shrinking (mm) 3,2 mm
Recovered wall thickness 0,64 mm
Elongation at break 350 %
Elongation at break (associated standard) ASTM D 638
Tensile strength at break 13 MPa
Longitudinal shrinkage +/- 10 %
Longitudinal shrinkage (associated standard) ASTM D 2671
Shrink ratio 2 : 1
Shrink ratio (associated standard) IEC 811-1-1
Operating temperature range min -55 °C
Operating temperature range max 135 °C
Operating temperature range (associated standard) IEC 216
Shrinkage temperature > 90 °C
Burning behaviour self-extinguishing
Burning behaviour (associated standard) UL 224
Flexibility at low temperatures -55 °C
Flexibility at low temperatures (associated standard) ASTM D 2671
Specific volume resistivity 10¹⁴ Ω cm
Specific volume resistivity (associated standard) ASTM D 257
Dielectric strength ​​ 20 kV/mm
Corrosion none
Corrosion (associated standard) ASTM D 2671
Resistance to fungus and decay No growth
Resistance to fungus and decay (associated standard) AMS-DTL-7444
More Information
Delivery scope Thin wall heat shrinkable tube on spool
Shelf life description Unlimited shelf life
Country of origin Poland
Customs tariff number 39173200
EAN-UPC 4010311030913
Alternate quantity 1 1 1 1
Alternative unit of measure Piece Meter Coil Carton
Base quantity 1 1 300 600
Base unit of measure Meter Meter Meter Meter
Lenght 0 0 390 395
Width 0 0 390 395
Height 0 0 175 395
Dimension unit Millimetres Millimetres
Volume 0 0 26,6 61,6
Volume unit Cubic decimetres Cubic decimetres
Net weight 0,012 0,012 3,6 7,2
Gross weight 0,012 0,012 3,62 7,5
Weight unit Kilogram Kilogram Kilogram Kilogram
