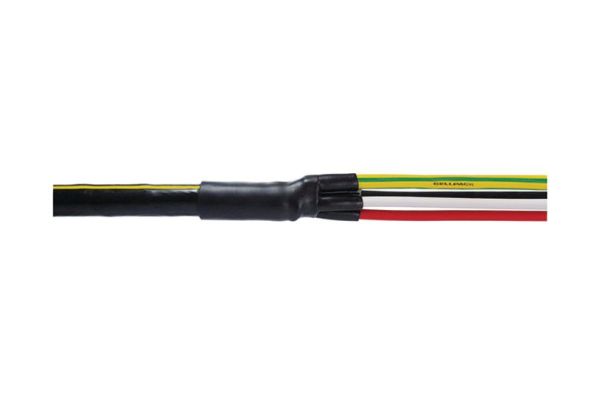

SEH4 95-150 V-C

Heat shrinkable indoor cable termination
for polymeric cables with concentric conductor
Art. no.
126832
More Information
Product family SEH4…V-C
Main description Heat shrinkable indoor cable termination
Sub description for polymeric cables with concentric conductor
Family description For connecting polymeric cables to distribution cupboards and panels. Suitable for PVC and XLPE insulated cables and PVC and PE cable sheaths with concentric conductor (e.g. GKN). Suitable for compression lugs on aluminium and copper conductors.
Characteristics Compact dimensions, Wide conductor and cross-section range, Resistant to chemical agents, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Transversely waterproof, High electrical insulating values, High mechanical strength, Ready for immediate operation
Applications Indoor
Optional accessory Compression cable lugs (see Connecting technology)
More Information
Voltage levels U0/U (Um) 0,6/1 (1,2) kV
Test standards EN 50393
Length L 20 mm
Nominal cross section Polymeric cable with concentric conductor per conductor 3x min 95 mm²
Nominal cross section Polymeric cable with concentric conductor per conductor 3x max 150 mm²
More Information
Delivery scope Sealing tubes, Heat shrinkable tube (green-yellow), Spreader cap, Cleaning tissue, Emery cloth, Assembly instructions
Shelf life description Unlimited shelf life
Country of origin Germany
Customs tariff number 39174000
EAN-UPC 4010311082837
Alternate quantity 1 1 1
Alternative unit of measure Piece Bag1 Carton
Base quantity 1 1 30
Base unit of measure Piece Piece Piece
Lenght 269 269 585
Width 171 171 390
Height 92 92 490
Dimension unit Millimetres Millimetres Millimetres
Volume 4,232 4,232 111,794
Volume unit Cubic decimetres Cubic decimetres Cubic decimetres
Net weight 0,202 0,202 6,06
Gross weight 0,202 0,202 6,36
Weight unit Kilogram Kilogram Kilogram
