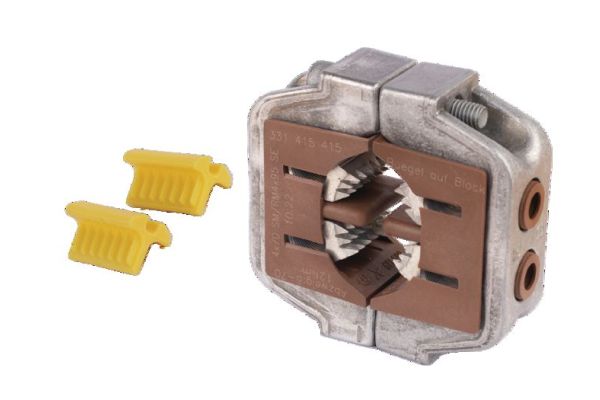

| Product family | Compact ring clamp |
|---|---|
| Main description | Branch clamp |
| Sub description | for low voltage |
| Family description | Branch clamp for aluminium sector shaped conductors. Suitable for 3- or 4-core cables with PVC, XLPE (VPE) EPR insulation. |
| Characteristics | Contact screws can be accessed from the side or from above, No stripping of wires, Can be installed / operated while under voltage, Safe and easy to handle |
| Applications | RM (class 2), SE (class 1) according to DIN EN/IEC 60228 (VDE 0295) |
| Materials | Blank aluminium |
|---|---|
| Cross section Cu/RM min | 70 mm² |
| Cross section Cu/RM max | 70 mm² |
| Cross section Al/SE | 95 mm² |
| Cross section Branch cable min | 6 mm² |
| Cross section Branch cable max | 50 mm² |
| Width across flat 1 | 6 mm |
| Width across flat 2 | 5 mm |
| Diameter D | 93 mm |
| Number of conductors | 4 Pieces |
| Delivery scope | Branch clamp | ||
|---|---|---|---|
| Country of origin | Germany | ||
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311048826 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 5 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 115 | 115 | 205 |
| Width (mm) | 108 | 108 | 95 |
| Height (mm) | 47 | 47 | 85 |
| Net weight (kg) | 0,385 | 0,385 | 1,925 |
| Gross weight (kg) | 0,385 | 0,385 | 2,225 |
