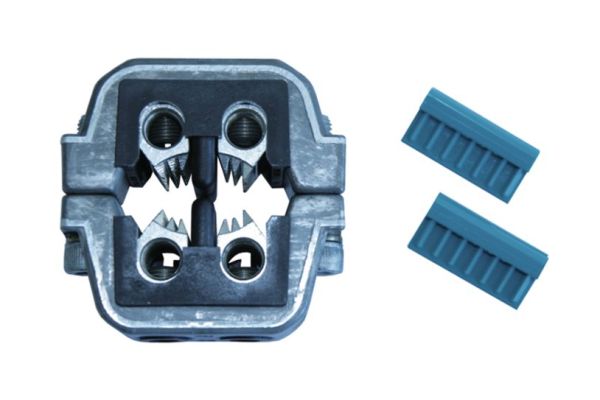

Ringklemme 4x35/50

Branch clamp
for low voltage
Art. no.
More Information
Product family Compact ring clamp
Main description Branch clamp
Sub description for low voltage
Family description Branch clamp for aluminium sector shaped conductors. Suitable for 3- or 4-core cables with PVC, XLPE (VPE) EPR insulation.
Characteristics Contact screws can be accessed from the side or from above, No stripping of wires, Can be installed / operated while under voltage, Safe and easy to handle
Applications RM (class 2), SE (class 1) according to DIN EN/IEC 60228 (VDE 0295)
More Information
Materials Blank aluminium
Cross section Cu/RM min 35 mm²
Cross section Cu/RM max 35 mm²
Cross section Al/SE 50 mm²
Cross section Branch cable min 6 mm²
Cross section Branch cable max 50 mm²
Width across flat 1 6 mm
Width across flat 2 5 mm
Diameter D 83 mm
Number of conductors 4 Pieces
More Information
Delivery scope Branch clamp
Country of origin Germany
Customs tariff number 85369010
EAN/GTIN 4010311048802
Alternate quantity 1 1 1
Alternative unit of measure Piece Bag1 Carton
Base quantity 1 1 5
Base unit of measure Piece Piece Piece
Lenght (mm) 108 108 215
Width (mm) 103 103 100
Height (mm) 50 50 100
Net weight (kg) 0,352 0,352 1,76
Gross weight (kg) 0,352 0,352 2,06
