V 16-50

Screw connector Al-Cu
for low voltage
Art. no.
126170
More Information
Product family V, VI, VS
Main description Screw connector Al-Cu
Sub description for low voltage

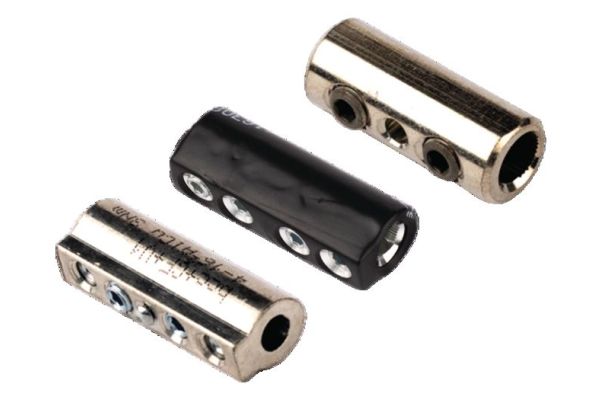

Family description Screw connector for aluminium and copper conductors with grub screws.
Applications For connecting conductors RM/SM (class 2), RE/SE (class 1) according to DIN EN/IEC 60228 (VDE 0295)
More Information
Materials Aluminium
Article notes V = Blank
Selection Note V = Blank
Nominal cross section RE min 16 mm²
Nominal cross section RE max 50 mm²
More Information
Delivery scope Screw connector
Country of origin Poland
Customs tariff number 85369010
EAN-UPC 4010311056807
Alternate quantity 1 1 1
Alternative unit of measure Piece Bag1 Carton
Base quantity 1 1 50
Base unit of measure Piece Piece Piece
Lenght 64 64 195
Width 23 23 150
Height 15 15 70
Dimension unit Millimetres Millimetres Millimetres
Volume 0,022 0,022 2,048
Volume unit Cubic decimetres Cubic decimetres Cubic decimetres
Net weight 0,049 0,049 2,45
Gross weight 0,049 0,049 2,75
Weight unit Kilogram Kilogram Kilogram
