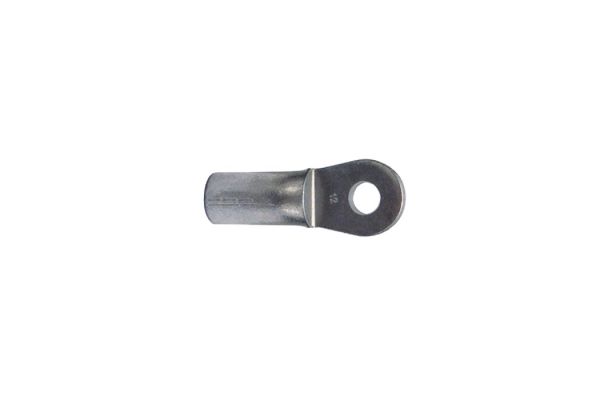

DK-CU-V-LD 50/12
Compression cable lug Cu
longitudinally sealed for low and medium voltage
Art. no.
126135
| Product family | DK-CU-V-LD |
|---|---|
| Main description | Compression cable lug Cu |
| Sub description | longitudinally sealed for low and medium voltage |
| Family description | Cable lug (hexagonally compressed) for copper conductors, suitable for outdoor cable terminations. |
| Applications | Cable lug for copper conductor RM/SM (Class 2) and Classes 5 and 6 according DIN EN 60228 (VDE 0295) |
| Family notes | To be used with suitable crimping tool with DIN inserts |
| Test standards | DIN 46235 |
|---|---|
| Materials | Copper tin-plated |
| Length L | 52 mm |
| Width B | 24 mm |
| Diameter D1 | 10 mm |
| Diameter D2 | 13 mm |
| Diameter D3 | 14,5 mm |
| Nominal cross section min | 50 mm² |
| Press die code K | 14 mm |
| Length A | 28 mm |
| Delivery scope | Compression cable lug | ||
|---|---|---|---|
| Country of origin | Germany | ||
| Customs tariff number | 85369010 | ||
| EAN-UPC | 4010311052724 | ||
| Alternate quantity | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Bag1 | Case |
| Base quantity | 1 | 1 | 50 |
| Base unit of measure | Piece | Piece | Piece |
| Lenght | 64 | 64 | 165 |
| Width | 15 | 15 | 135 |
| Height | 15 | 15 | 80 |
| Dimension unit | Millimetres | Millimetres | Millimetres |
| Volume | 0,014 | 0,014 | 1,782 |
| Volume unit | Cubic decimetres | Cubic decimetres | Cubic decimetres |
| Net weight | 0,044 | 0,044 | 2,2 |
| Gross weight | 0,044 | 0,044 | 2,5 |
| Weight unit | Kilogram | Kilogram | Kilogram |
