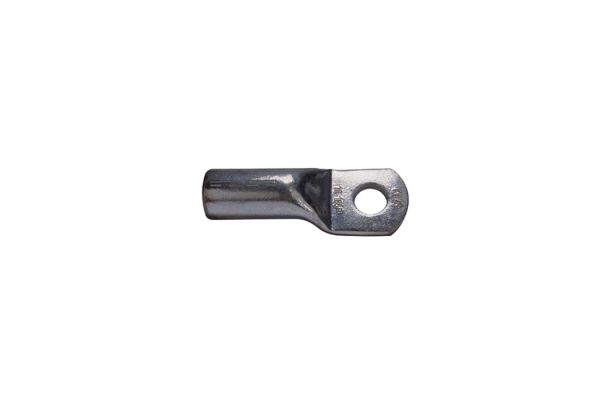

DK-CU-V 625/16
Compression cable lug Cu
for low and medium voltage
Art. no.
126099
| Product family | DK-CU-V |
|---|---|
| Main description | Compression cable lug Cu |
| Sub description | for low and medium voltage |
| Family description | Cable lug (hexagonally compressed) for copper conductors, suitable for indoor cable terminations. |
| Applications | Cable lug recommended for copper conductors RM/SM (class 2) according to DIN EN 60228 (VDE 0295) |
| Family notes | To be used with suitable crimping tool with DIN inserts |
| Test standards | DIN 46235, IEC 61238 |
|---|---|
| Materials | Copper tin-plated |
| Length L | 135 mm |
| Width B | 60 mm |
| Diameter D1 | 34,5 mm |
| Diameter D2 | 17 mm |
| Diameter D3 | 44 mm |
| Nominal cross section min | 625 mm² |
| Press die code K | 44 mm |
| Length A | 80 mm |
| Delivery scope | Compression cable lug | |
|---|---|---|
| Country of origin | Slovakia | |
| Customs tariff number | 85369010 | |
| EAN-UPC | 4010311052663 | |
| Alternate quantity | 1 | 1 |
| Alternative unit of measure | Piece | Carton |
| Base quantity | 1 | 1 |
| Base unit of measure | Piece | Piece |
| Lenght | 165 | 165 |
| Width | 135 | 135 |
| Height | 75 | 75 |
| Dimension unit | Millimetres | Millimetres |
| Volume | 1,671 | 1,671 |
| Volume unit | Cubic decimetres | Cubic decimetres |
| Net weight | 0,8 | 0,8 |
| Gross weight | 0,8 | 0,8 |
| Weight unit | Kilogram | Kilogram |
