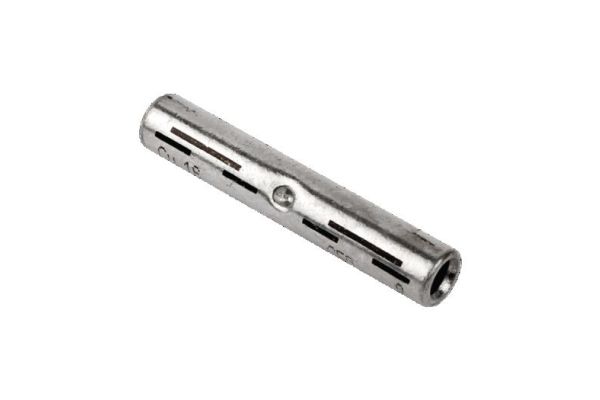

DV-CU-V 16
Compression connector Cu
according to DIN 46267 without separator for low voltage
Art. no.
125951
| Product family | DV-CU-V |
|---|---|
| Main description | Compression connector Cu |
| Sub description | according to DIN 46267 without separator for low voltage |
| Family description | Strain-relieving connector (hexagonally compressed) for copper conductors, suitable for joints. |
| Notes | To be used with suitable crimping tool with DIN inserts |
| Applications | Connector for RM/SM (Class 2) copper conductors according to DIN EN 60228 (VDE 0295) |
| Test standards | DIN 46267-1 |
|---|---|
| Materials | Copper tin-plated |
| Length L | 50 mm |
| Diameter D1 | 5,5 mm |
| Nominal cross section min | 16 mm² |
| Nominal cross section max | 16 mm² |
| Press die code K | 8 mm |
| Delivery scope | Compression connectors | ||
|---|---|---|---|
| Country of origin | Poland | ||
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311053035 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 100 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 47 | 47 | 100 |
| Width (mm) | 7 | 7 | 100 |
| Height (mm) | 7 | 7 | 100 |
| Net weight (kg) | 0,015 | 0,015 | 1,5 |
| Gross weight (kg) | 0,015 | 0,015 | 1,8 |
