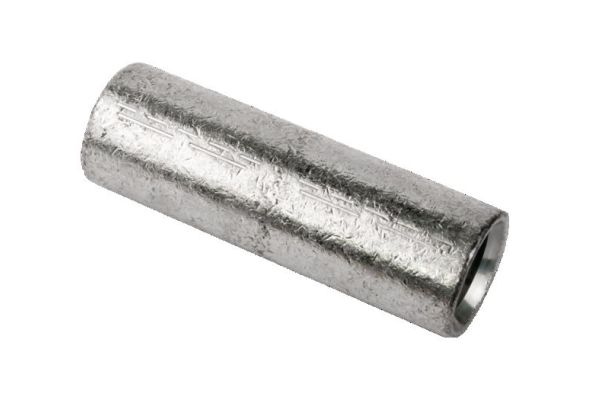

DVZ-CU-V-LD 240
Compression connector Cu
according to DIN 46267 with separator for low voltage
Art. no.
125906
| Product family | DVZ-CU-V-LD |
|---|---|
| Main description | Compression connector Cu |
| Sub description | according to DIN 46267 with separator for low voltage |
| Family description | Strain-relieving connector (hexagonally compressed) with a separator for copper conductors, suitable for joints. |
| Applications | Especially for transition joints and pot end joints, Connector for RM/SM (Class 2) copper conductors according to DIN EN 60228 (VDE 0295) |
| Family notes | To be used with suitable crimping tool with DIN inserts |
| Test standards | DIN 46267-1 |
|---|---|
| Materials | Copper tin-plated |
| Length L | 90 mm |
| Diameter D1 | 21,5 mm |
| Nominal cross section min | 240 mm² |
| Nominal cross section max | 240 mm² |
| Press die code K | 28 mm |
| Delivery scope | Compression connectors | |||
|---|---|---|---|---|
| Country of origin | Slovakia | |||
| Customs tariff number | 85369010 | |||
| EAN-UPC | 4010311053301 | |||
| Alternate quantity | 1 | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Bag1 | Case | Carton |
| Base quantity | 1 | 1 | 5 | 45 |
| Base unit of measure | Piece | Piece | Piece | Piece |
| Lenght | 87 | 87 | 136 | 280 |
| Width | 28 | 28 | 82 | 180 |
| Height | 28 | 28 | 60 | 160 |
| Dimension unit | Millimetres | Millimetres | Millimetres | Millimetres |
| Volume | 0,068 | 0,068 | 0,669 | 8,064 |
| Volume unit | Cubic decimetres | Cubic decimetres | Cubic decimetres | Cubic decimetres |
| Net weight | 0,242 | 0,242 | 1,21 | 10,89 |
| Gross weight | 0,242 | 0,242 | 1,51 | 11,19 |
| Weight unit | Kilogram | Kilogram | Kilogram | Kilogram |
