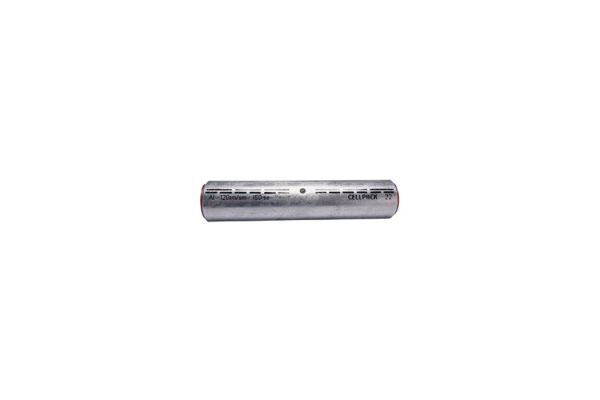

DV-AL 185
Compression connector Al
according to DIN 46267 without separator
Art. no.
125890
| Product family | DV-AL |
|---|---|
| Main description | Compression connector Al |
| Sub description | according to DIN 46267 without separator |
| Family description | Strain relief connector (hexagonally compressed) without separator for aluminium conductor, suitable for joints. |
| Notes | To be used with suitable crimping tool with DIN inserts |
| Materials | Blank aluminium |
|---|---|
| Length L | 125 mm |
| Diameter D1 | 18,3 mm |
| Nominal cross section min | 185 mm² |
| Nominal cross section max | 240 mm² |
| Press die code K | 28 mm |
| Delivery scope | Compression connectors | ||
|---|---|---|---|
| Country of origin | Poland | ||
| Customs tariff number | 85369010 | ||
| EAN/GTIN | 4010311053394 | ||
| Packaging type | Piece | Bag1 | Carton |
| Content quantity | 1 | 1 | 5 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 130 | 130 | 136 |
| Width (mm) | 30 | 30 | 82 |
| Height (mm) | 30 | 30 | 55 |
| Net weight (kg) | 0,132 | 0,132 | 0,66 |
| Gross weight (kg) | 0,132 | 0,132 | 0,96 |
