| Product family | No. 72 |
|---|---|

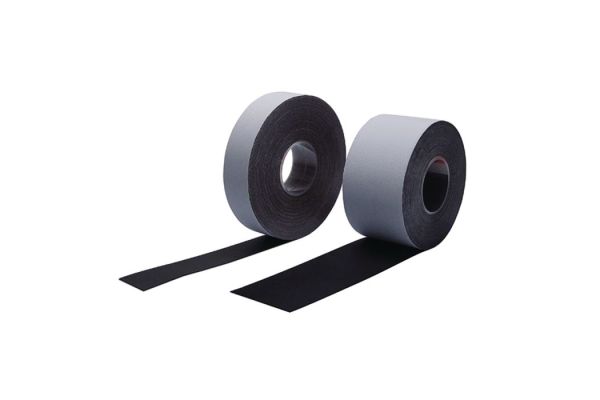

| Main description | Repair tape |
| Sub description | for repairing damaged cable sheaths |
| Family description | Sealing tape made of black polyisobutyl, self-sealing, for watertight protection of cables and components. |
| Notes | The use of a repair joint, such as MZ cast resin straight-through joint, is mandatory in case of damage extending beyond the cable sheath to the core insulation, screen or armour. |
| Characteristics | Self-amalgamating, 100 % waterproof, Superior physical and electrical properties, Exceptional resistance to prolonged immersion in water and against ozone, Residue-free dissolvability of most substrates and therefore suitable for temporary repairs |
| Applications | Repair of damaged cable sheaths |
| Materials | PIB-Base |
|---|---|
| Length L | 10 m |
| Width B | 50 mm |
| Thickness | 0,5 mm |
| Colours | black |
| Elongation at break | 900 % |
| Elongation at break (associated standard) | BS 903 |
| Tensile strength at break | 2 MPa |
| Tensile strength at break (associated standard) | ASTM D 150 |
| Heat resistance min | -40 °C |
| Heat resistance max | 90 °C |
| Specific volume resistivity | 10¹³ Ω cm |
| Specific volume resistivity (associated standard) | ASTM D 257 |
| Dielectric strength | 42 kV/mm |
| Dielectric strength (associated standard) | ASTM D 149 |
| Delivery scope | Repair tape No. 72 | ||
|---|---|---|---|
| Country of origin | Great Britain | ||
| Customs tariff number | 40051000 | ||
| EAN/GTIN | 4010311060118 | ||
| Packaging type | Piece | Roll | Carton |
| Content quantity | 1 | 1 | 18 |
| Unit of measure | Piece | Piece | Piece |
| Lenght (mm) | 95 | 95 | 302 |
| Width (mm) | 92 | 92 | 208 |
| Height (mm) | 50 | 50 | 163 |
| Net weight (kg) | 0,264 | 0,264 | 4,752 |
| Gross weight (kg) | 0,264 | 0,264 | 5,052 |
