Product family | No. 64 |
---|---|

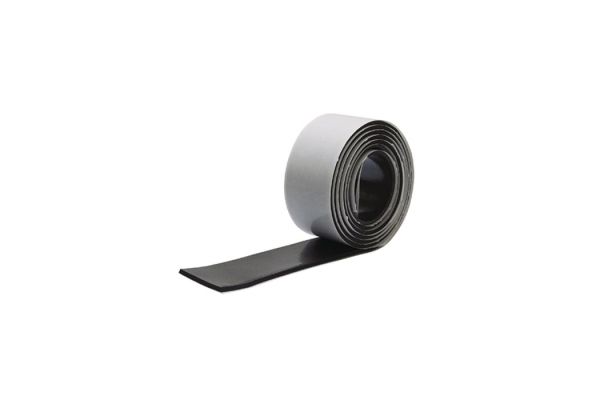

Main description | Sealing tape |
Sub description | for permanently flexible sealing |
Family description | Universally suitable, auto-amalgamating, to seal homogeneously or upholstering cables and conductors. |
Characteristics | Self-amalgamating, Corrosion-resistant, Ozone-resistant, Permanently flexible, Excellent adherence to metal, glass rubber and plastic, Superior physical properties |
Applications | Sealing of cable and conductor interstices, Repairing of damaged cable sheaths, Water-resistant sealing of cable entry points, Padding of cable insulation, Suitable for connections using acrylic and epoxy resin compounds, Protection against dust, moisture and corrosion |
Materials | Butyl-/Rubber based |
---|---|
Length L | 1,5 m |
Width B | 38 mm |
Thickness | 3,2 mm |
Colours | black |
Tensile strength at break | 0,1 MPa |
Heat resistance min | -30 °C |
Heat resistance max | 80 °C |
Specific volume resistivity | 10¹² Ω cm |
Dielectric strength | 23 kV/mm |
Delivery scope | Sealing tape | |||
---|---|---|---|---|
Country of origin | France | |||
Customs tariff number | 40051000 | |||
EAN-UPC | 4010311005584 | |||
Alternate quantity | 1 | 1520 | 1 | 1 |
Alternative unit of measure | Piece | Millimetre | Tin | Carton |
Base quantity | 1 | 1 | 1 | 32 |
Base unit of measure | Piece | Piece | Piece | Piece |
Lenght | 93 | 93 | 93 | 551 |
Width | 90 | 90 | 90 | 250 |
Height | 50 | 50 | 50 | 240 |
Dimension unit | Millimetres | Millimetres | Millimetres | Millimetres |
Volume | 0,419 | 0,419 | 0,419 | 33,06 |
Volume unit | Cubic decimetres | Cubic decimetres | Cubic decimetres | Cubic decimetres |
Net weight | 0,343 | 0 | 0,343 | 10,976 |
Gross weight | 0,343 | 0,343 | 0,343 | 11,276 |
Weight unit | Kilogram | Kilogram | Kilogram | Kilogram |
