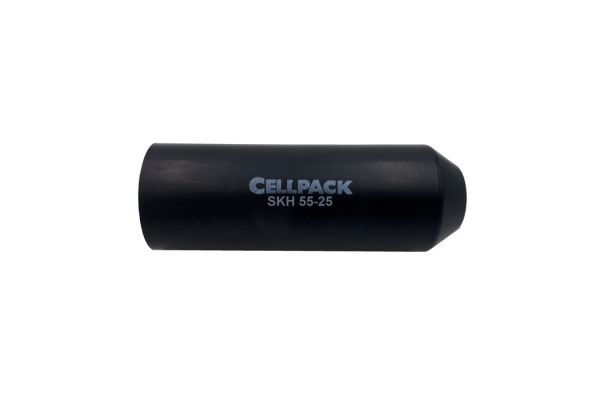

SKH 55-25
Heat shrinkable end cap
with adhesive optionally with additional sealing material
Art. no.
125336
| Product family | SKH, SKHD |
|---|---|
| Main description | Heat shrinkable end cap |
| Sub description | with adhesive optionally with additional sealing material |
| Family description | Protection against humidity and pressure for cables, conductors and pipes with a diameter of 5 - 105 mm. |
| Notes | Recovered dimension after shrinking |
| Characteristics | Resistant to chemical agents, Stabilized against UV rays, Free from paint-wetting inhibiting substances, Halogen-free, Superior electrical properties, Pressure-tight, High mechanical strength, 100 % waterproof |
| Applications | Protection against moisture and pressure for cables, conductors and pipes |
| Test standards | IEC 60684-2 |
|---|---|
| Materials | Cross-linked polyolefin, Free of lead and cadmium |
| Article notes | with adhesive |
| Selection Note | with adhesive |
| Length L1 | 165 mm |
| Length L1* | 155 mm |
| Colours | black |
| Inner diameter before shrinking (mm) | 55 mm |
| Inner diameter after shrinking (mm) | 25 mm |
| Recovered wall thickness | 3,5 mm |
| Elongation at break | 300 % |
| Elongation at break (associated standard) | IEC 62677-2 |
| Tensile strength at break | 10 MPa |
| Tensile strength at break (associated standard) | IEC 62677-2 |
| Operating temperature range min | -40 °C |
| Operating temperature range max | 100 °C |
| Operating temperature range (associated standard) | IEC 62677-2 |
| Shrinkage temperature | > 110 °C |
| Burning behaviour | not self-extinguishing |
| Burning behaviour (associated standard) | IEC 60684-2 |
| Flexibility at low temperatures | -40 °C |
| Flexibility at low temperatures (associated standard) | IEC 62677-2 |
| Thermal ageing (168 h at 150 °C): Elongation at break | 200 % |
| Thermal ageing (168 h bei 150 °C): Tensile strength at break | 8 MPa |
| Thermal ageing (168 h bei 150 °C) (associated standard) | IEC 62677-2 |
| Specific volume resistivity | 10¹² Ω cm |
| Specific volume resistivity (associated standard) | IEC 60243-2 |
| Dielectric strength | 10 kV/mm |
| Dielectric strength (associated standard) | IEC 60243-1 |
| Corrosion | none |
| Corrosion (associated standard) | EN 62677-2 |
| Resistance to fungus and decay | Rate 1 |
| Resistance to fungus and decay (associated standard) | IEC 62677-2 |
| Delivery scope | Heat shrinkable end cap | |||||
|---|---|---|---|---|---|---|
| Shelf life description | Unlimited shelf life | |||||
| Country of origin | India | |||||
| Customs tariff number | 39174000 | |||||
| EAN/GTIN | 4010311005171 | |||||
| Alternate quantity | 1 | 1 | 1 | 1 | 1 | 1 |
| Alternative unit of measure | Piece | Bag1 | Bag | Pack | Carton | Pal. OW |
| Base quantity | 1 | 1 | 20 | 20 | 300 | 1200 |
| Base unit of measure | Piece | Piece | Piece | Piece | Piece | Piece |
| Lenght (mm) | 150 | 150 | 150 | 150 | 490 | 1200 |
| Width (mm) | 62 | 62 | 62 | 62 | 490 | 800 |
| Height (mm) | 62 | 62 | 62 | 62 | 590 | 1150 |
| Net weight (kg) | 0,039 | 0,039 | 0,78 | 0,78 | 11,7 | 46,8 |
| Gross weight (kg) | 0,039 | 0,039 | 0,785 | 0,785 | 12 | 57,2 |
